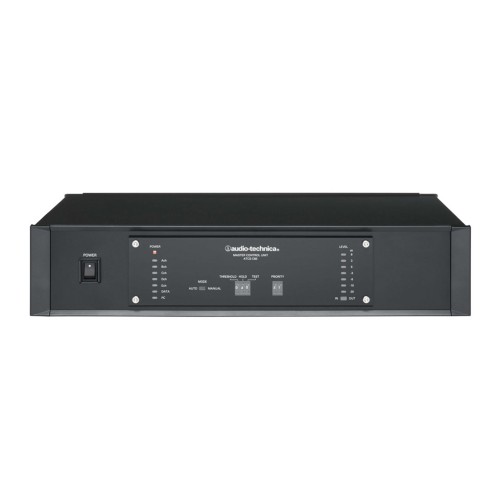

audio-technica ATCS-C60
MASTER CONTROL UNIT
The number of units with priority settings can be selected
Option for FIFO “First In First Out” or FILO “First In Last Out” modes
Automatic mode and manual or traditional button press mode both available
Adjustable threshold setting for automatic mode
Adjustable hold time for how long the microphone stays on after speaking
Direct output of up to 5 separate audio channels can be output via the soft
ATCS-C60
WIRELESS DESIGN FOR INCREASED FLEXIBILITY CONFIGURATION
Cost is an important factor in all businesses, their conference rooms are continuously used for different applications. By its very nature, an infrared system is very flexible and compact, making it a choice entirely appropriate for such multi-purpose environments.
In the digital era, the control of information is paramount. With an infrared conference system your wireless signal will not leave the room; it is impossible to capture from another building, for example. Compared to a UHF system (radio waves), which behaves in the same way a radio station transmitting over a broad area, the infrared system excels at protecting your information, since no leakage is possible.
- A single control unit can manage the conference
- 50 participants can be managed by the integrated DSP audio processor
- Infrared technology keeps your information safe in the conference room
- No interference with other wireless technologies
- Multiple input-output with high quality audio
- Ability to integrate 4 simultaneous interpreters
- Great connection diversity allows integration into various systems
- RS232 connection to a PC to control the software, video integration, AMX and Crestron
- Allows maximum control with ATCS-60MAG Conference Management Software
- Different configurations of rooms are available and modifiable
“KEEPS YOUR INFORMATION CONFIDENTIAL”
By its nature, infrared technology is secure, guaranteed to keep you and your information in the conference room only. No information can be received outside of the room.
“FOUR CHANNEL SIMULTANEOUS INTERPRETING”
The ATCS-C60 central control unit has 4 distinct monitor channels, to integrate several interpreters in multilingual meetings i.e. the native language plus three other language interpreters.
“GREAT FLEXIBILITY OF USE”
The settings of the microphones and cameras can be controlled from a PC via the "Conference Manager" software. The scalable design of the system architecture ensures easy adaptation of your configuration, depending to the conference needs.
AUTOMATIC OR MANUAL
ATCS-C60 has a switch that allows you to switch from automatic to manual speaking mode.
RACKABLE
The central control unit can be installed in a rack mount by fixing the rack adapters (parts supplied).
RS-232C PORT
The ATCS-C60 has an RS-232C computer connection port, for use with our Conference Manager software.
PERIPHERAL CONNECTIONS
Apart from giving overall control, the ATCS-C60 also allows you to connect wired microphones, speakers, and recording devices.
| Overall System | |
|---|---|
| Operating Frequencies | Infrared |
| Number Of Channels | Voice: 5 channels Monitor: 4 channels Data: 2 channels |
| Simultaneous Use | 150 |
| Control Unit | |
|---|---|
| Audio Input | Monitor Inputs 1, 2, 3 & 4: -10 dBV, unbalanced External Input 1: -10 dBV, unbalanced External input 2: -10 dBV, balanced, -50 dBV, unbalanced |
| Audio Output | Direct Output: -10 dBV, unbalanced Output 2: -10 dBV, balanced Recording outputs 1 & 2: -10 dBV, unbalanced |
| Maximum Delegates | 150 |
| Connections | BNC Terminal (75 ohms) x4 |
| Power Supply | 100 to 240 V AC, 50/60 Hz |
| Power Consumption | 75 W (max) |
| Weight | 4.2 kg |
| Accessories | 2 rack adapters; 6 rack installation screws; 5 mini drivers; AC power cord |
| Infrared | |
|---|---|
| Bandwidth | 1 - 10 MHz |
| Modulation Method | FM modulation |
| Data Communication | 9,600 bps |
