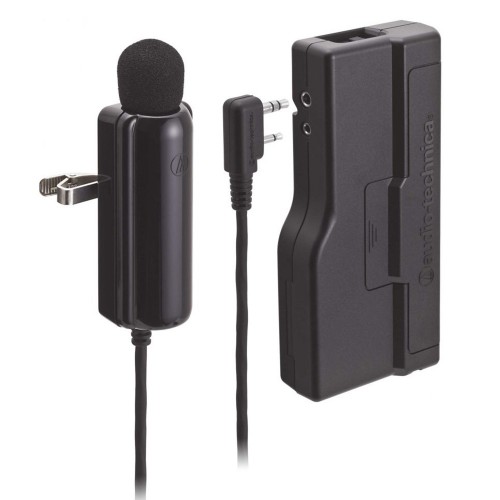

audio-technica ATIR-T85

INFRARED LAVALIER MICROPHONE FOR ATCS-60 CONFERENCE SYSTEM

Lavalier microphone’s infrared wireless signal stay in the the room
It's more secure than UHF and 2.4 GHz lavelier microphones
Up to 3 ATIR-T88 / ATIR-T85 microphones can be used simultaneously
Up to 5 audio lines can be used at the same time
The microphone features an ON/OFF switch
Powered by two AA batteries

ATIR-85

HANDHELD CONFIDENTIALITY

The infrared conference system developed by Audio-Technica offers all the advantages of infrared communication and uses 100% wireless microphones or desk mount gooseneck microphones. It therefore offers its users more flexibility - including the ability to easily change the location of microphones or system configurations.

Unlike UHF or 2.4 GHz wireless microphones, the wireless infrared signal does not spread outside the hardware used, which ensures secure communication.

  • Infrared Lavalier Microphone specially designed for the Audio-Technica ATCS-60 infrared conference system
  • Uses infrared transmission technology
  • Use up to three microphones together with the ATCS-M60 control unit
  • Ability to use up to 5 audio channels simultaneously, by combining several ATIR-T88, ATIR-T85 and ATCS-M60
  • On / off switch
  • Three levels of use to preserve battery life
  • Tie clip 45° Adjustable vertically and horizontally
  • Cable length 1m


“GREAT MOBILITY”

The central infrared control unit ATCS-C60 allows simultaneous use of up to 3 handheld microphones (ATIR-T88) or lavalier microphones (ATIR-T85), to facilitate a conference whilst preserving mobility.

“FLEXIBILITY OF AN INFRARED SYSTEM”

The ATCS-60 infrared conference system offers up to 5 audio channels for simultaneous use of a combination of ATIR-T85 lavalier microphones, ATIR-T88 handheld microphones and ATCS-M60 desks.

“ENERGY SAVING”

The ATIR-T85 infrared lavalier microphine is equipped with a switch for selecting different operating modes (Eco, Lo and Hi) depending on the size of the room, to conserve battery power. In Eco mode, you get a battery life of 10 hours.




SECURE DATA

By its nature, infrared technology is secure, guaranteed to keep you and your information inside the conference room only. No information can be received outside of the room.

ENERGY SAVING

The switch on the ATIR-T85 microphone body allows you to adjust the transmission power to achieve maximum battery life of 10 hours.

CONDENSER CAPSULE

The microphone features a cardioid electret condenser capsule.

LED LAMP

A red or green LED on the microphone body, indicates the status of the microphone.

ATIR-T85
Microphone
Element Electret condenser
Polar Pattern Unidirectional
Frequency Response 100 - 15,000 Hz
Battery Type Two AA alkaline batteries
Battery Current/Life ECO aprrox. 10 hours
LO approx 6 hours
HI approx 3 hours
Weight Transmitter: approx. 66g (body only)
Microphone: approx. 48g (including the tie clip)
Dimensions 88,5 × 28 × 23mm
Output Connector L-shaped miniature + subminiature plug
Accessories Included Channel labels,small screwdrivers
Overall System
Modulation Mode FM
Transmitter
Dimensions 120 × 60 × 23 mm (excluding the belt clip)
