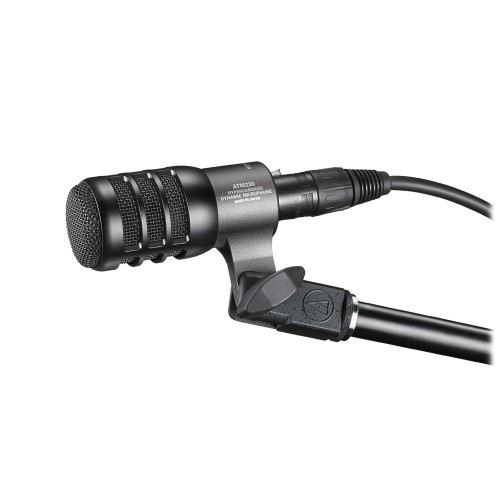

audio-technica ATM230
HYPERCARDIOID DYNAMIC INSTRUMENT MICROPHONE
Hypercardioid polar pattern greatly improves off-axis rejection
Handles very high SPL at close range
Big, warm low-frequency response with excellent attack
Low-profile design permits versatile placement on drum kit
ATM230
HYPERCARDIOID DYNAMIC INSTRUMENT MICROPHONE
The ATM230 hypercardioid instrument microphone brings a compact drum model to Audio-Technica’s popular Artist Series line. The mic’s proprietary capsule is designed to excel in high SPL applications, delivering full, well-rounded audio with an exceptional low-end.
The hypercardioid polar pattern keeps the focus on the sound source, directionality that is aided by the mic’s low-profile design, which allows it to be placed in a wide variety of setups. All this makes the ATM230 ideally suited for miking toms, snare and other percussion instruments.
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Handles very high SPL at close range
- Big, warm low-frequency response with excellent attack
- Low-profile design permits versatile placement around drum kit
- Rare earth magnet for improved output and transient response
- Rugged, all-metal design and construction for years of trouble-free use
- Includes AT8665 drum mount and a soft protective pouch
| Element | Dynamic |
| Polar Pattern | Hypercardioid |
| Frequency Response | 30-12,000 Hz |
| Open Circuit Sensitivity | –54 dB (1.9 mV) re 1V at 1 Pa |
| Impedance | 600 Ohms |
| Weight | 292 g (10.3 oz) |
| Dimensions | 82.5 mm (3.2") long, 38.0 mm (1.5") maximum diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8665 drum mount for 5/8"-27 threaded adaptor; 5/8"-27 to 3/8"-16 threaded adaptor; soft protective pouch |
