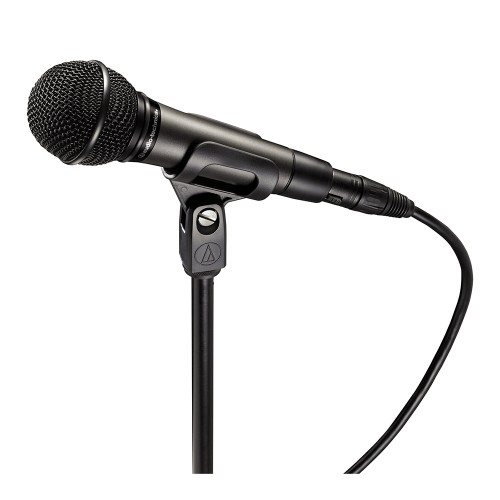

audio-technica ATM510

CARDIOID DYNAMIC VOCAL MICROPHONE

Tailored for smooth, natural vocal reproduction
Durable performance for professional applications
Rare-earth magnet for improved output and transient response
Excellent off-axis rejection for minimum feedback
Multi-stage grille design
Corrosion-resistant contacts from gold-plated XLRM-type connector

ATM510

ATM510

CLEAR AND NATURAL VOICE REPRODUCTION

The ATM510 cardioid dynamic handheld microphone is designed for clear and natural voice reproduction.

Equipped with newly designed internal shock mounting for reduced handling and stage noise, the ATM510 is cardioid dynamic workhorse is designed for smooth, natural vocal reproduction. The microphone features super-durable construction for long-lasting performance, a rare-earth magnet for high output, and a multi-stage grille design for excellent protection against plosives. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, maximizing isolation from other sound sources and minimizing feedback.

  • High fidelity voice reproduction. Lasting professional results
  • Rare-earth magnet for improved output and transient response
  • Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
  • Corrosion-resistant contacts from gold-plated XLRM-type connector
  • Rugged metal construction ensures long-lasting performance
  • Product guaranteed for 15 years


“HI-ENERGY RARE EARTH MAGNETS”

The element of the ATM510 consists of Hi-Energy rare earth magnets which guarantee perfect sound balance. With high output, this microphone provides excellent transient response and very good intelligibility on stage.

“MULTI-LAYERED GRILLE”

Built for the road, the ATM510 has a multi-layer metal grille that provides excellent protection against plosives and sibilance without affecting treble clarity. Its superior anti-shock system significantly reduces handling noise.

“LONG-LASTING PROFESSIONAL RESULTS”

With its rugged all-metal body, its steel grille and gold plated corrosion-resistant connectors, the ATM510 guarantees long-term professional performance!




RUGGED CONSTRUCTION

The ATM510 is made of a robust metal construction guaranteeing long-term performance.

MULTI-LAYERED GRILLE

The multi-layer grille provides excellent protection against pops and sibilance without affecting treble clarity.

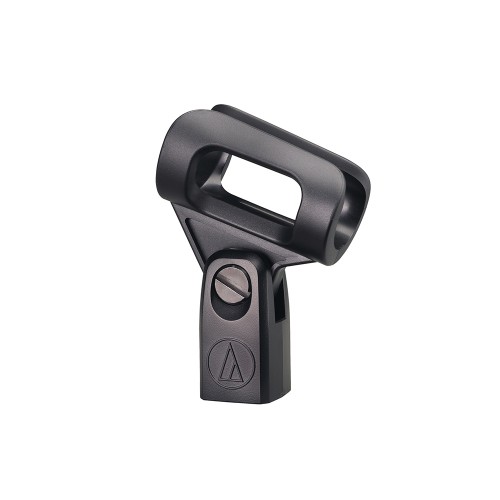

QUIET-FLEX™ CLAMP

The AT8470 Quiet-Flex™ isolating clamp (included) protects against vibrations, ensures retention and facilitates the positioning of the ATM510.

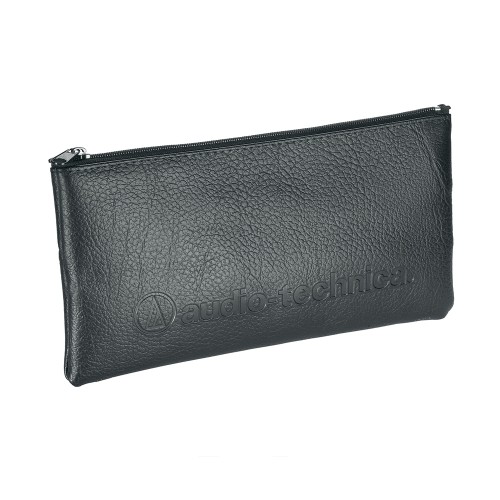

PROTECTIVE CARRY POUCH

The ATM510 comes with a soft protective pouch for easy storage and transportation.

ATM510
Element Dynamic
Polar Pattern Cardioid
Frequency Response 90 - 16,000 Hz
Open Circuit Sensitivity -55 dB (1.7 mV) re 1V at 1 Pa
Impedance 300 ohms
Weight 258g
Dimensions 170.0 mm long, 53.7 mm diameter
Output Connector Integral 3-pin XLRM-type
Accessories Included AT8470 Quiet-Flex® stand clamp for 5/8" threaded stands; 5/8" to 3/8" threaded adapter; soft protective pouch
