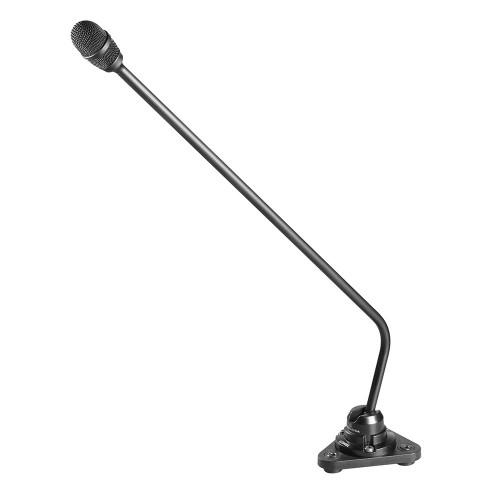

audio-technica ES905CL
CARDIOID RIGID-PIPE CONDENSER MICROPHONE
Designed for high-quality sound reinforcement and professional recording
Low-profile element provides uniform cardioid polar pattern
Rigid-pipe design with ball-in-socket base permits flexible positioning
Sturdy metal base mounts to table, desk or podium with included hardware
Superior off-axis rejection for maximum gain before feedback
Requires 11V to 52V DC phantom power
ES905CL
CARDIOID RIGID-PIPE CONDENSER MICROPHONE
The ES905CL is designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications. Its rigid-pipe design with ball-in-socket base permits flexible positioning, while its durable metal base mounts to a table, desk or podium with included hardware. The attached wire mesh windscreen with internal pop protection effectively reduces noise from P-pops, wind, and ventilation air currents. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard®innovations. The ES905CL also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone's low-profile element provides a uniform cardioid polar pattern with a 120º acceptance angle. Power module included.
- Designed for high-quality sound reinforcement, professional recording and broadcasting
- Low-profile element provides uniform cardioid polar pattern with 120º acceptance angle
- Rigid-pipe design with ball-in-socket base permits flexible positioning
- Sturdy metal base mounts to table, desk or podium with included hardware
- Superior off-axis rejection for maximum gain before feedback
- Requires 11V to 52V DC phantom power
- UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
- Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
Element | Fixed-charge back plate permanently polarised condenser |
Polar Pattern | Cardioid |
Frequency Response | 60 - 20,000 Hz |
Open Circuit Sensitivity | -38 dB (12.5 mV) re 1V at 1 Pa |
Impedance | 250 ohms |
Maximum Input Sound Level | 138 dB SPL, 1 kHz at 1% T.H.D. |
Low Frequency Roll Off | 80 Hz, 18 dB/octave |
Dynamic Range | 111 dB, 1 kHz at Max SPL |
Signal-to-Noise Ratio | 67 dB, 1 kHz at 1 Pa |
Phantom Power Requirements | 11-52V DC, 2 mA typical |
Weight | Microphone: 330 g (11.6 oz) Power Module : 81 g (2.9 oz) |
Dimensions | Microphone : 523.4 mm (20.61") long - 24.6 mm (0.97") head diameter Power Module : 92.9 mm (3.66") long, 18.9 mm (0.74") diameter |
Output Connector | Integral 3-pin XLRM-type (Power module) |
Cable | 2.9 m (9.5') long, (permanently attached to microphone) 3.2 mm (0.13") diameter, 2-conductor, shielded cable terminated with TA3F-type connector |
Accessories Included | AT8538 power module; (3) #8 x 1" black oxide wood screws for microphone mount |
