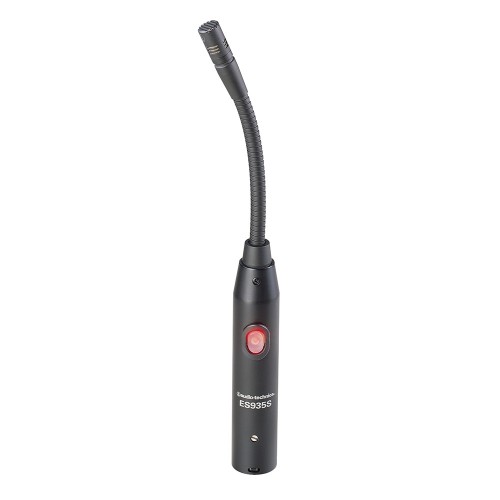

audio-technica ES935SH6

HYPERCARDIOID CONDENSER GOOSENECK MICROPHONE WITH LIGHTING MUTE SWITCH

Designed for professional recording and demanding sound pickup applications
Mute switch in base lights to indicate operational status of the microphone
Low-profile element provides uniform hypercardioid polar pattern
Unobtrusive design with an overall length of only 197.3 mm
Plugs into any standard XLRF-type connector

ES935SH6

ES935SH6

HYPERCARDIOID CONDENSER GOOSENECK MICROPHONE WITH LIGHTING MUTE SWITCH

This super-compact, small-diameter gooseneck delivers flexible positioning with a sleek, low-profile appearance. The mic's low-profile element provides a uniform hypercardioid polar pattern with 100º acceptance angle. It is equipped with an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise and a mute switch with an LED that lights when the mic is on. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations.
  • Designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications
  • Mute switch in base lights to indicate operational status of the microphone
  • Low-profile element provides uniform hypercardioid polar pattern with 100º acceptance angle
  • Unobtrusive design with an overall length of only 7.77" (197.3 mm)
  • Plugs into any standard XLRF-type connector, or direct mounts to 5/8"-27 stands using included thread-mount adapter
  • Included shock mount attenuates noise, shock and vibration transmitted through the mounting surface
  • Available interchangeable elements permit angle of acceptance from 90º to 360º
  • Small-diameter gooseneck permits highly flexible positioning while maintaining smooth, contoured appearance
  • Superior off-axis rejection for maximum gain before feedback
  • Requires 11V to 52V DC phantom power
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • RoHS compliant - free from all substances specified in the EU directive on hazardous substances
ES935SH6
Element Fixed-charge back plate, permanently polarised condenser
Polar Pattern Hypercardioid
Frequency Response 80 - 20,000 Hz
Open Circuit Sensitivity -40 dB (10.0 mV) re 1V at 1 Pa
Impedance 250 Ω
Maximum Input Sound Level 138 dB SPL, 1 kHz at 1% THD
Low Frequency Roll Off 80 Hz, 18 dB/octave
Dynamic Range 109 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 65 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 4 mA typical
Weight 104 g
Dimensions Length 197.3 mm, Head Diameter 8.4 mm, Base Diameter 18.9 mm
Output Connector Integral 3-pin XLRM-type
Accessories Included AT8109 two-stage foam windscreen, AT8474 universal isolation mount, AT8473 quick-mount stand adaptor; 5/8"-27 to 3/8"-16 threaded adaptor
