audio-technica PRO24-CMF

STEREO CONDENSER CAMCORDER MICROPHONE

Stereo microphone designed to attach to a camcorder
Lightweight, portable design with rugged all-metal construction
Spatial impact and high-fidelity stereo sound image
Battery-free operation available
On/off switch for convenient operation
Permanently attached 6"-12" coiled cable

PRO24CMF

PRO24-CMF

SMALL SIZE, GREAT QUALITY

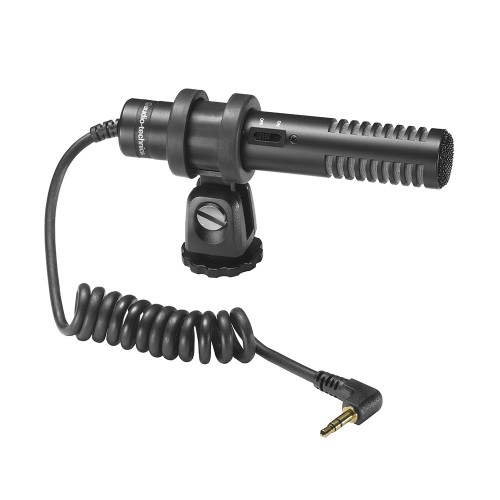

The PRO24-CMF camcorder microphone is a lightweight, compact stereo condenser ideal for digital recording with high-fidelity stereo sound. Equipped with a windjammer, accessory shoe and permanently attached coiled cable, the microphone features a pair of cardioid elements in an X-Y configuration to provide the spatial impact and realism of a live sound field. The microphone is designed for either battery operation or battery-free operation when used with camcorders that provide plug-in power at the mic input. Like all Audio-Technica mics, the PRO24-CM is rugged; it's built to endure the rigors of field production.

  • Stereo microphone designed to attach to a camcorder
  • For camcorders with an accessory shoe and stereo microphone input
  • Lightweight, portable design with rugged all-metal construction
  • Pair of cardioid condenser elements provides spatial impact and high-fidelity stereo sound image
  • Battery-free operation when used with recording devices that provide plug-in power at the mic input
  • On/off switch for convenient operation
  • Permanently attached 15cm - 30cm coiled cable
  • Right-angle molded 3.5 mm stereo mini plug at output end
  • Includes camera-mount, windscreen, windjammer, battery and protective pouch


“STEREO X/Y”

The PRO24-CMF is equipped with a pair of cardioid condenser capsules, configured as X / Y, restoring the spatial impact and realism of a live sound field. Its professional capacitor circuit guarantees excellent sound quality.

“LIGHTWEIGHT AND COMPACT”

The PRO24-CMF is a compact and lightweight stereo capacitor microphone, which is ideally suited for use with a camera, a DSLR or a micro recorder with stereo mini jack 3.5mm input and a shoe for fastening accessories.

“COMES WITH ALL THE ACCESSORIES”

The PRO-24CMF comes with a video camera shoe mount, which has an integrated camera adaptor that attaches to the shoe mount of a DSLR camera or handheld camera. It also comes with the AT8123 windsock in synthetic fur, which allows you to continue making quality recordings, even in high winds. The LR44 battery which allows the PRO24-CMF to be self-powered in order for it to be plugged into all types of equipment, is also included, as well as a sofy carry pouch, big enough for all of these things.



AT8123

FUR WINDSOCK INCLUDED

Equipped for high winds, the PRO-24CMF comes with its own synthetic fur AT8123 windscreen.

AT8123

15CM COILED CABLE

The output of each of the stereo channels is asymmetric low impedance (Lo-Z). The inbuilt spiral cable of 15cm - 30cm is finished on the output side with a 3.5mm molded stereo mini-jack.

AT8123

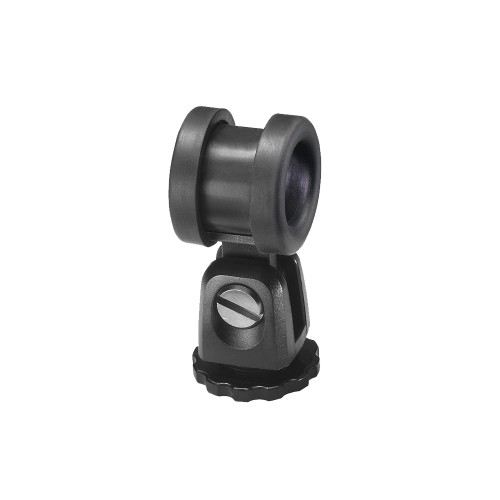

VIDEO CAMERA SHOE MOUNT

The PRO-24CMF comes with an AT8472 video camera shoe mount, which has an integrated camera adaptor which attaches to the shoe mount of a DSLR camera or handheld camera.

AT8123

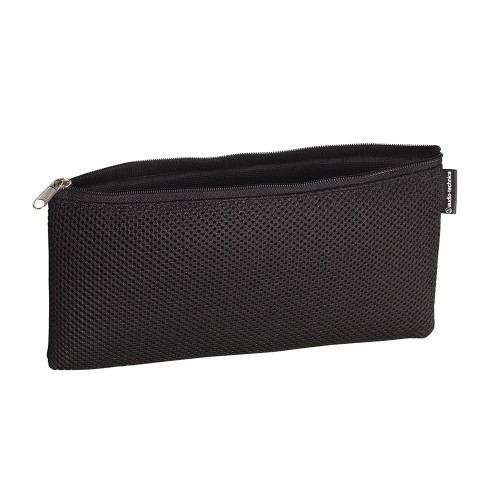

CARRY POUCH

The PRO24-CMF and its accessories can be stored in the supplied carry pouch. Thus protected, the PRO24-CMF can accompany you everywhere.

PRO24-CMF
Polar Pattern X/Y Stereo
Frequency Response 100-17,000 Hz
Open Circuit Sensitivity -50 dB (3.1 mV) re 1V at 1 Pa
Impedance 600 ohms
Maximum Input Sound Level 119 dB SPL, 1 kHz at 1% T.H.D.
Switches On/off
Dynamic Range 82 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 57 dB, 1 kHz at 1 Pa
Battery Type 1.5V LR44
Battery Current/Life 0.6 mA / 200 hours typical
Weight 111g
Dimensions 116.5 mm long, 21.0 mm maximum body diameter
Output Connector 3.5 mm stereo mini plug on cable
Cable Permanently attached 152.4 mm - 304.8 mm (6"-12") coiled cable with right-angle moulded 3.5 mm stereo mini-plug at output end
Accessories Included Video-camera shoe mount; LR44 battery; windscreen; Fur windjammer AT8123 and soft protective pouch
