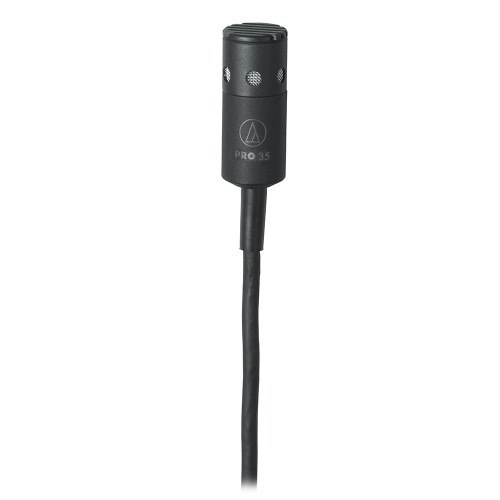

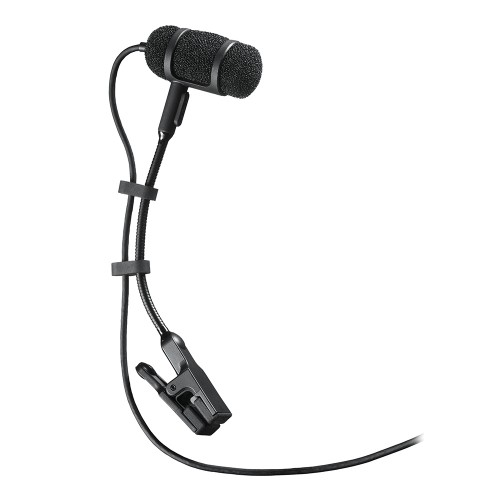

audio-technica PRO35
CARDIOID CONDENSER CLIP-ON INSTRUMENT MICROPHONE
Designed for sax, toms, brass and percussion
Ideal for active stage performances
UniMount® clip permits accurate positioning
Cardioid polar pattern reduces pickup of sounds from the sides and rear
PRO35
IT FOLDS TO YOUR NEEDS
Designed for saxophone, brass and percussion, the PRO35 is ideal in applications with high sound pressure levels, and for stage performances. It comes equipped with the UniMount® clamp, which allows for precise positioning, better impact resistance, and a good protection of the capsule.
- Ideal microphone for sax, toms, brass and percussion
- Cardioid polar pattern improves isolation of desired sound source and reduces the pickup of sounds to the sides and rear
- Perfect for non-static stage performances
- Extended frequency response renders all the subtle nuances of a performance
- 80Hz low-cut filter on the power module
- UniMount® clip allows for precise positioning, providing impact resistance and protecting the capsule
- Gold plated corrosion-resistant contacts on the XLRM-type connectors
- Excels in applications with high sound pressure level
“EXTENDED FREQUENCY RESPONSE”
The PRO35 has a dynamic range of 115 dB, a maximum SPL of 145 dB level and frequency response extends from 50 Hz to 15 kHz.
“UNIMOUNT® CLIP SYSTEM”
The PRO35's UniMount® clip allows for accurate positioning, providing shock and vibration resistance whilst protecting the element.
“LOW-CUT FILTER”
The AT8538 power module is equipped with a low-cut filter that removes frequencies below 80 Hz. This ensures the maximal removal of noise pollution (ground vibration of the instrument, or electric humming or other various buzzing), without altering the quality of the instrument sound capture.
CARDIOID CAPSULE
Cardioid directivity for better isolation of the source, and resuction of sounds from the sides and rear.

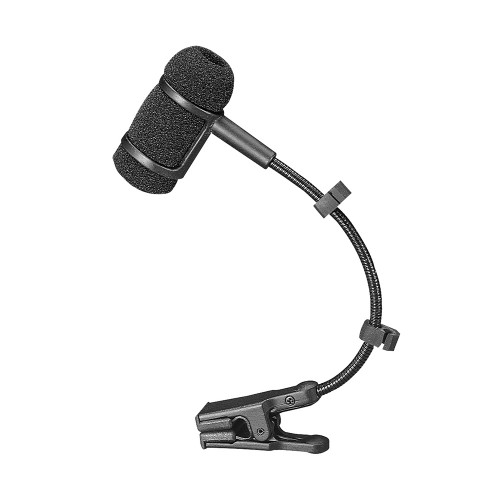

UNIMOUNT CLAMP
The AT8418 Unimount clip (included) allows the precise positioning of the PRO35 on all types of instruments (brass, sax, percussion, ...)

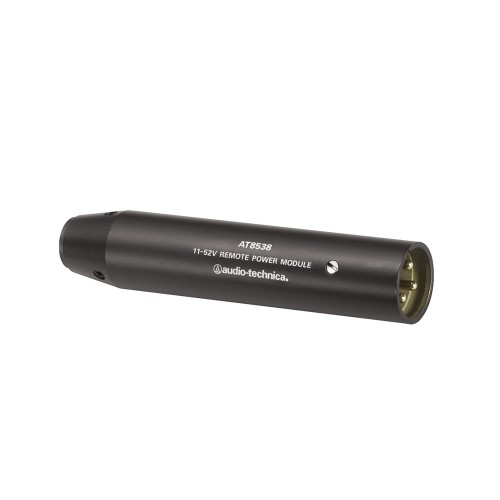

POWER SUPPLY
The PRO35 comes with its AT8538 power module with 80Hz low-cut filter and an exit to XLRM 3-pin connector.

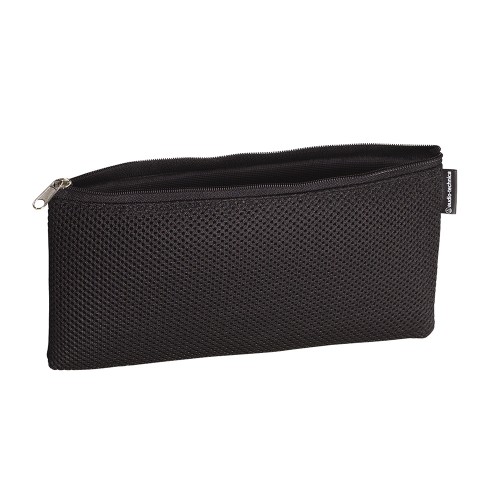

PROTECTIVE CASE
The PRO35 comes with a soft protective pouch for easy storage and transport.
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 50 - 15,000 Hz |
| Open Circuit Sensitivity | -45 dB (5.6 mV) re 1V at 1 Pa |
| Impedance | 250 ohms |
| Maximum Input Sound Level | 145 dB SPL, 1 kHz at 1% T.H.D. |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Switches | Flat, roll-off |
| Dynamic Range | 115 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 64 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical |
| Cable | 6.0' (1.8 m) long (permanently attached to microphone), 0.10" (2.6 mm) diameter, 2-conductor, shielded cable with TA3F-type connector |
| Accessories Included | AT8418 UniMount® microphone instrument mount; AT8538 power module; soft protective pouch |
