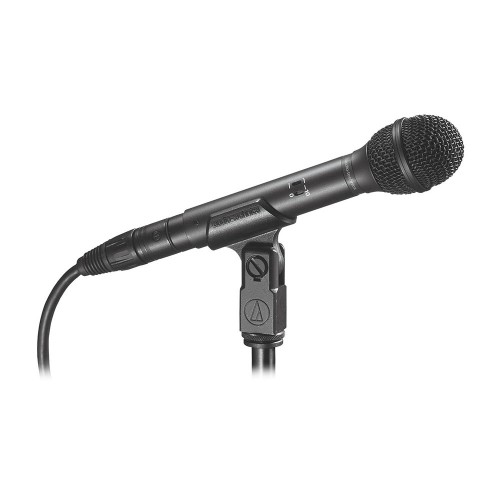

audio-technica U873R
HANDHELD HYPERCARDIOID CONDENSER MICROPHONE
Designed for high-quality sound reinforcement, professional recording
Smooth, accurate reproduction for handheld and fixed-mount applications
Superior off-axis rejection for maximum gain before feedback
Hypercardioid polar pattern reduces pickup of sounds from the sides & rear
Integral 80 Hz high-pass filter switch and 10 dB pad switch
Accepts interchangeable elements to permit angle of acceptance (100°- 360°)
U873R
HANDHELD HYPERCARDIOID CONDENSER MICROPHONE
The U873R UniPoint hypercardioid condenser microphone offers smooth, accurate audio reproduction for handheld and fixed-mount applications. The microphone is equipped with Audio-Technica's UniGuard® technology for unsurpassed immunity from radio frequency interference. It also features an 80 Hz UniSteep® filter that reduces pickup of unwanted low-frequency ambient noise. The microphone's special internal shock mounting eliminates virtually all handling and cable noise. Designed for distortion-free output even in intense sound fields, interchangeable elements (cardioid, hypercardioid and omnidirectional) permit selection of angle-of-acceptance from 100° to 360°.
- Designed for high-quality sound reinforcement, professional recording and broadcasting
- Smooth, accurate reproduction for handheld and fixed-mount applications
- Superior off-axis rejection for maximum gain before feedback
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Integral 80 Hz high-pass filter switch and 10 dB pad switch
- Accepts interchangeable elements to permit angle of acceptance from 100° to 360°
- Superior anti-shock engineering ensures low handling noise
- High sensitivity and high SPL capability
- Robust design for enduring dependability
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Hypercardioid |
| Frequency Response | 70 - 20,000 Hz |
| Open Circuit Sensitivity | -41 dB (8.9 mV) re 1V at 1 Pa |
| Impedance | 200 ohms |
| Maximum Input Sound Level | 155 dB SPL, 1 kHz at 1% T.H.D. |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave |
| Switches | Flat, roll-off; 10 dB pad |
| Dynamic Range | 131 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 3 mA typical |
| Weight | 160 g |
| Dimensions | 6.17" (156.7 mm) long, 1.48" (37.7 mm) head diameter |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | AT8122 foam windscreen; AT8405a stand clamp for 5/8"-27 threaded stands; soft protective pouch |
