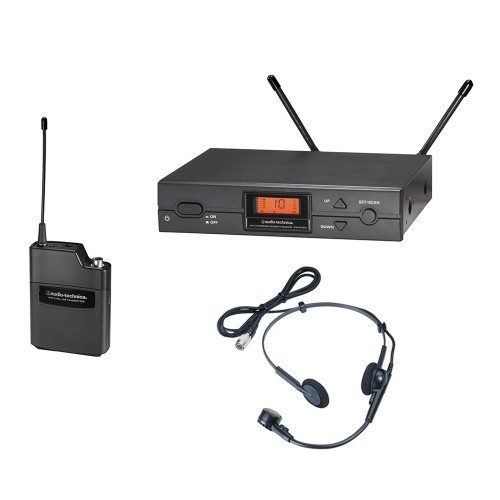

audio-technica ATW-2110A/H

2000A SERIES UNIPAK® SYSTEM WITH PRO8HECW

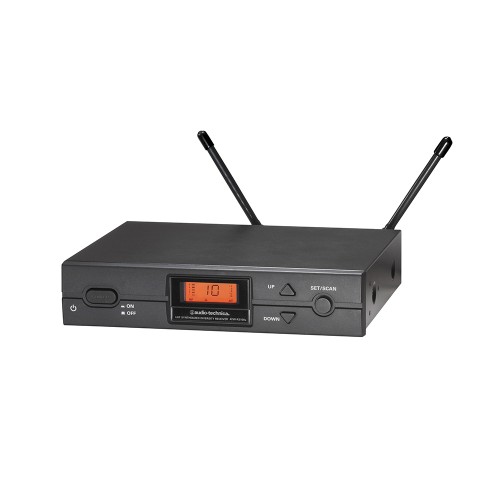

ATW-R2100a receiver

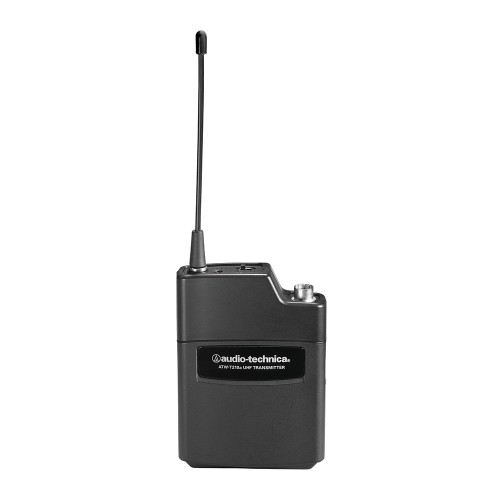

ATW-T210a UniPak® body-pack transmitter

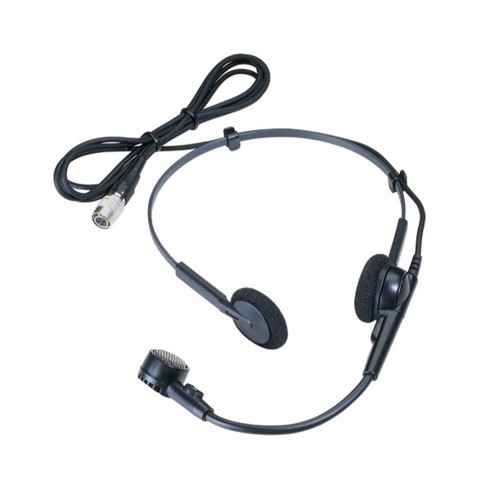

PRO8HEcW hypercardioid dynamic headworn microphone
Automatic frequency scanning
Up to 10 user selectable channels available
Tone Lockâ„¢ squelch function fights interference

ATW-2110a/H

ATW-2110A/H

2000A SERIES UNIPAK® SYSTEM WITH PRO8HECW

Audio-Technica’s second generation of the well known 2000 Series now offers increased RF power on both the handheld and beltpack transmitters for increased link stability. Charging contacts on the transmitters allow easy operation with rechargeable batteries. The 12VDC bias voltage on both BNC antenna inputs allows operation with the ATW-B80 antenna booster or other active components.With this breakthrough series, Audio-Technica makes easy setup, automatic scanning and other advanced wireless features affordable as never before. Automatic frequency scanning - standard on all 2000a Series wireless receivers - finds and sets the best available channel at the touch of a button. For those using multiple wireless systems simultaneously, the 2000a Series offers another ease-of-use feature: any of its 10 channels may be used together - eliminating confusing frequency groups and other frequency-coordination problems.

  • Automatic frequency scanning finds an open channel at the touch of a button
  • Up to 10 user selectable channels are available
  • Compatibility varies from country to country
  • True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
  • Tone Lock™ squelch function fights interference
  • Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering
  • Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
  • PRO8HEcW Headworn hypercardioid dynamic microphone with HRS connector
ATW-2110a/H
Overall System
Operating Frequencies UHF band
856.100 – 864.900 MHz (F Band)
606.500 – 629.900 MHz (U Band – ch.38)
721.500 – 746.375 MHz (G Band)
656.125 – 678.500 MHz (D Band)
487.125 – 506.500 MHz (I Band)
Number Of Channels 10 total
Frequency Stability ±0.005%, Phase Lock Loop frequency control
Modulation Mode FM
Frequency Response 100 Hz to 15,000 Hz
Operating Range 100 m (300') typical
Operating Temperature Range 41° F (5° C) to 113° F (45° C)
Receiver
Receiving System True Diversity
Image Rejection 55 dB nominal, 50 dB minimum
Signal-To-Noise Ratio >100 dB at 40kHz deviation (A-weighted), maximum modulation 40 kHz
Sensitivity 20dBµV (S/N 60dB at 5 kHz deviation, IEC-weighted)
Total Harmonic Distortion < 1% (at 1 kHz, ±20 kHz deviation)
Audio Output Attenuator (ATTN) Unbalanced: 25mV (100k ohms load), 1/4" phone jack
Balanced: 50mV (Attenuator; 0dB)
12.5mV (Attenuator; -12dB) at 1 kHz ± 5kHz deviation, 100k ohm load, XLRM-type
Antenna Input BNC-type 50 Ohms – Bias voltage 12V DC, 60mA each
Dimensions 210 mm x 44 mm x 162.2 mm (W x H x D)
Weight 1.0kg
Accessories Included Two flexible UHF antennas, rack mount adapters, AC adapters
Belt Pack
RF Power Output High: 30mW; Low: 10mW, nominal
Spurious Emissions According to National Regulations
Battery Type 1.5V AA alkaline or rechargeable AA NiMH (not included)
Current Consumption 150 mA typical
Battery Life Approximately 9 hours (low), 7 hours (high)
Dimensions 66 mm x 92.3 mm x 22.5 mm (W x H x D)
Net Weight 80g
