sachtler ACT2 Monitor Bracket 6" / no clamp / Upgrade

ANY ANGLE YOU WISH — ACT 2 MONITOR BRACKET

Upgrade kit for any older artemis first generation monitor bracket.

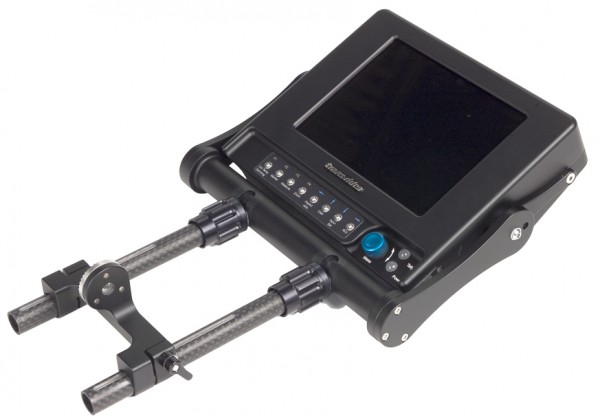

artemis ACT2 Monitor Bracket for Transvideo 6" Cine HD Monitor, 7" Small HD or Cinetronic Gen. 2, with 140 mm rods, no post clamp.

Thanks to the neutral way of mounting your monitor at its COG, you can now change the angle of the screen without loosing the overall balance of your rig.
To achieve perfect dynamic balance, the monitor should be in perfect balance too.
The design of the artemis ACT2 monitor bracket is based on the idea to mount the monitor at its COG.
When the monitor is mounted at its neutral point, its center of gravity, changing the viewing angle will not spoil the balance of the rig anymore. ?

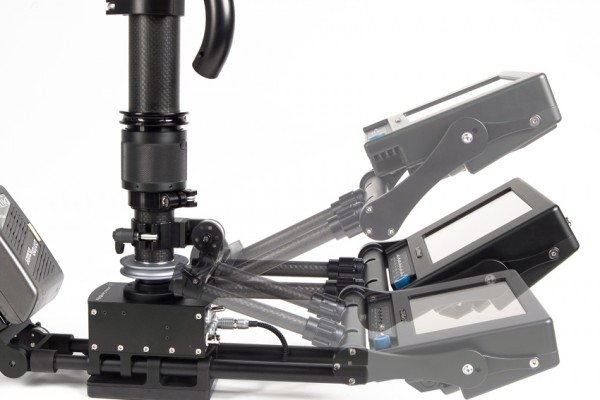

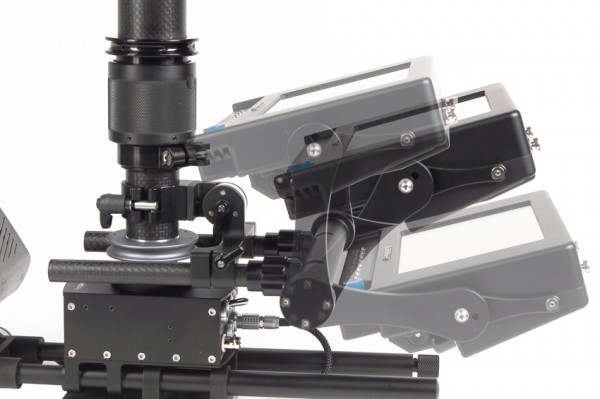

The artemis ACT2 monitor bracket got 3 pivoting joints all together.?
1.The rosette at the post clamp allows you to pivot the complete monitor bracket up and down.
?2. The second joint inside the base of th e yoke, which can be pivoted 90° up from the horizontal position.
3. The third joint is right at the COG of the used monitor.

This feature allows you to get the best counterweight effect out of the monitor and best viewing position for the operator.

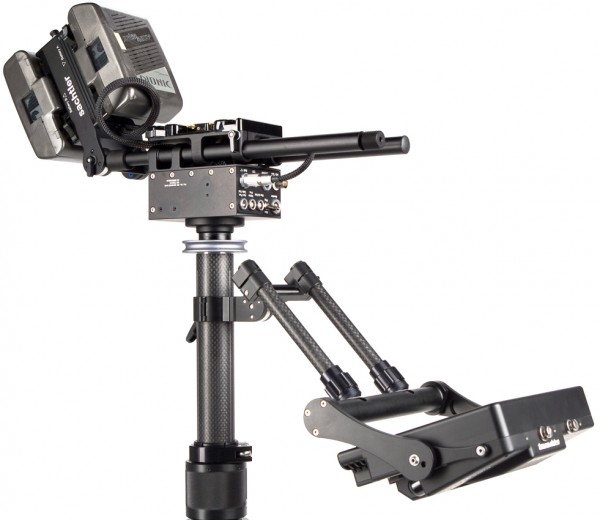

A proven quick release mechanism allows to flip over the monitor for low-mode in seconds.
Because it is so easy to detach the monitor from the new bracket, save transport of the monitor in case is possible.

Of course all adjustment are tool-free and can be done in seconds.

Note:
Monitor is not included!
