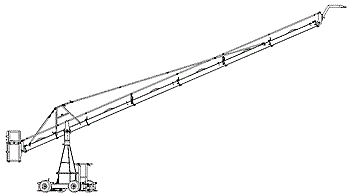

MovieTech Remote 400-R5
With only two different bracing and parallelogram bars as well as corresponding crane-arm segments with a length of 1 m and 1.5 m, the MT crane system is the compelling choice due to its extremely short set-up times. Thanks to its intelligent connection system, the "push pins" which were forever being lost at the filming location are now a thing of the past.
The MT 400 is entitled to bear the BG-PRÜFZERT badge.
| Rear boom | 1 m | 1, 5m | |
| Required boom, front | 5 x 1,5 m | 4 x 1,5 m+1 x 1m | |
| Strut bars / parallelogram bars | Front | 13 x 1,5 m | 12 x 1,5 m+1 x 1m |
| Rear | 3 x 1 m | 3 x 1,5 m | |
| Total travel | 13,54 m | 13,54 m | |
| Maximum height | Without column extension | 8,49 m | 7,12 m |
| With column extension | 8,82 m | 8,7 m | |
| Counterweight without payload | 260 kg | 156 kg | |
| Payload | 65 kg | 65 kg | |
| Counterweight with payload | 632 kg | 424 kg | |
| Boom length | Front (reception flange) | 9,9 m | 9,9 m |
| Rear (outer edge of basket) | 1,97 m | 2,45 m | |
| Own weight without payload and counterweights | 323,6 kg | 350,1 kg | |
