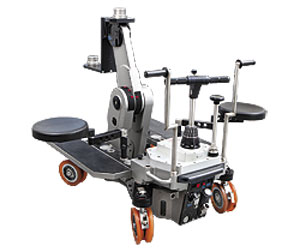

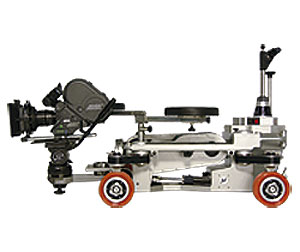

MovieTech ARCO Dolly
The ARCO Dolly is a hydraulic dolly, which is characterized by a very stable double lifting arm and a rigid base. It can be steered very easily and accurately. The driving modes "crab", "round" and "conventional" can be switched directly at the handle bar. Like this the dolly can be perfectly adapted to the requirements of the individual situation on set.
Item.No. 1510-0 consisting of:
- set of platforms (left, right, front)
- power supply cable
- 2 adjustable seats
- set of push bars 2pcs. (Item No.1537SET)
- low rig with quick release
- 90° accessory plate (Item No. 1535-0)
- manual
The Highlights
- Variable chassis leg adjustment cam-lock chassis
- Incorporate brakes on rear wheels
- Compact and lightweight for travel and storage
- Works on both straight and curved tubular track
- Vertical arm travel
- Variety of tires available
| Max. Camera Mount Height (without Risers) | 45 in | 114 cm |
| Min. Camera Mount Height (without Risers) | 16 in | 40 cm |
| Min. Camera Mount Height with 90° plate | 3 in | 8 cm |
| Max. boom lifts (fully charged) | 7 Lifts | |
| Chassis min. length (wheels fully retracted) | 34,5 in | 88 cm |
| Min. chassis height for transportation | 16 in | 40 cm |
| Chassis width – legs at 0° position | 20 in | 51 cm |
| Chassis width – legs at 45° position | 34 in | 86 cm |
| Turn radius (R) | 0 bis unendlich | |
| Compressed air charging time (empty to full) | ca. 70 Sek. | |
| Carrying weight | 326 lbs | 148 kg |
