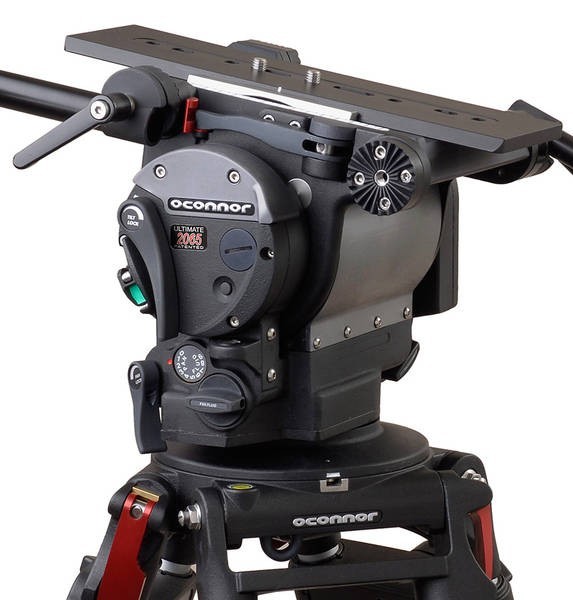

OConnor Ultimate 2065 Fluid Head Package (Mitchell)

ULTIMATE 2065 Fluid Head Package for Cameras up to 71 LBS (32.2 kg). (Mfr # C1236-0001)

OCONNOR

The OConnor Ultimate 2065 Fluid Head Package (Mitchell) is a fluid head package comprising of Ultimate 2065 Fluid Head (C1236-0003), a Mitchell base (08281) with a Mitchell tiedown (08402), a large European quick release (2575-120), a pan handle (2575-137), and a pan handle extension (2575-135).

Key Features:

  • Ergonomic Design / For Cinematography
  • Lightweight (22.9 lb / 10.4 kg)
  • Heavy Payload - up to 71 lb (32.2 kg)
  • Controls Located on the Operator Side
  • Single-touch Platform Release Lever
  • Twin Platform Scales/4 Handle Rosettes
  • Comfortable Hand Rest on the Left Side
  • Collapsible Counterbalance Crank
  • Mitchell Base & Tiedown
  • 12" Pan Handle & 11.5" Extension

WEIGHT 22.9 lb. (10.4 kg)
CAMERA PLATE OConnor Plate, 120mm Euro Plate, Panavision Dovetail Plate, Arriflex Dovetail Plate
TILT RANGE / ANGLE +90
PAYLOAD @ 4 in. 89 lbs. (40.4 kg), @ 6 in. 71 lbs. (32.2kg), @ 8 in. 58 lb. (26.3 kg)
SUITABLE FOR Oconnor's Cine HD Tripod, Cine HD Baby Tripod, 35L Tripod and 25L Tripod
WIDTH 12.4 in. (31.5 cm)
DEPTH 8.6 in. (21.8 cm)
HEIGHT 8.4 in. (21.3 cm)




  • Ultimate 2065 Fluid Head (Mitchell) (C1236-0003)
  • Euro Style Quick Release (2575-120)
  • Pan handle for 2065, 2575 & 120EX ranges (2475-137)
  • Pan handle extension for 1030-246 & 2575-137 (2575-135)
  • Standard Manufacturer's Warranty
