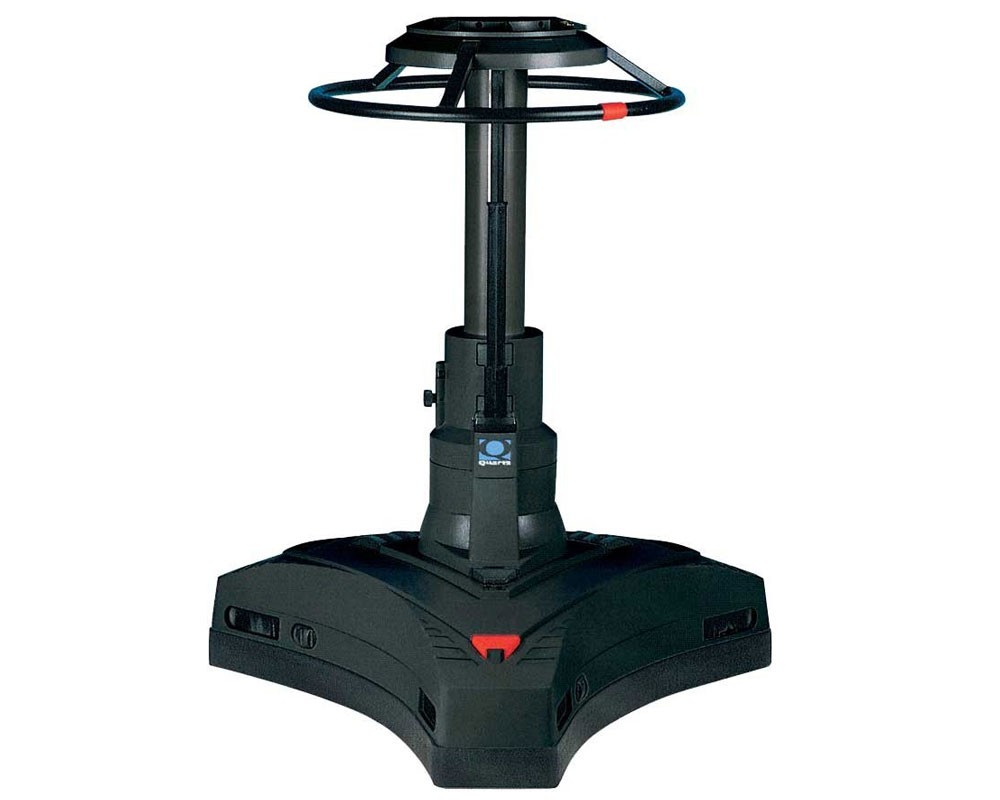

Vinten (3825-3) Quartz One Pedestal

The Quartz One Pedestal is a single-stage pedestal with a maximum capacity of 95 kg / 209.5 lbs. It can accommodate a wide range of camera, lens and teleprompter combinations, making it particularly suitable for studio productions.

The Quartz design offers precise crab and steer control from a central steering ring, together with the ability to accelerate smoothly and rapidly; enabling easy repositioning even in the tightest of sets. The design of the base offers maximum stability, a single foot brake gives extra control at all times, and the fully skirted base incorporates a cable guard system that is simply adjusted by three external knobs.

• Integral cable guard
• Detachable steering ring
• Single parking brake
• Low pressure pneumatic system

Specifications:
• Max. Capacity: 95 kg / 209.5 lbs [max. capacity includes trim weights]
• Height Range: 71 to 122 cm / 28 to 48"
• Weight: 89.5 kg / 197.3 lbs
• On-Shot Stroke: 51 cm / 20"
• Tracking Width: 108 cm / 42"
• Transit Width: 80 cm / 31.5"
• Wheel Diameter: 12.5 cm / 5"
• Detachable Steering Ring Diameter: 63.5 cm / 25"
• Trim Weights: 3.5 kg / 7.7 lbs
• Ground Clearance: 2 cm / 0.8"
• Colour: Black
