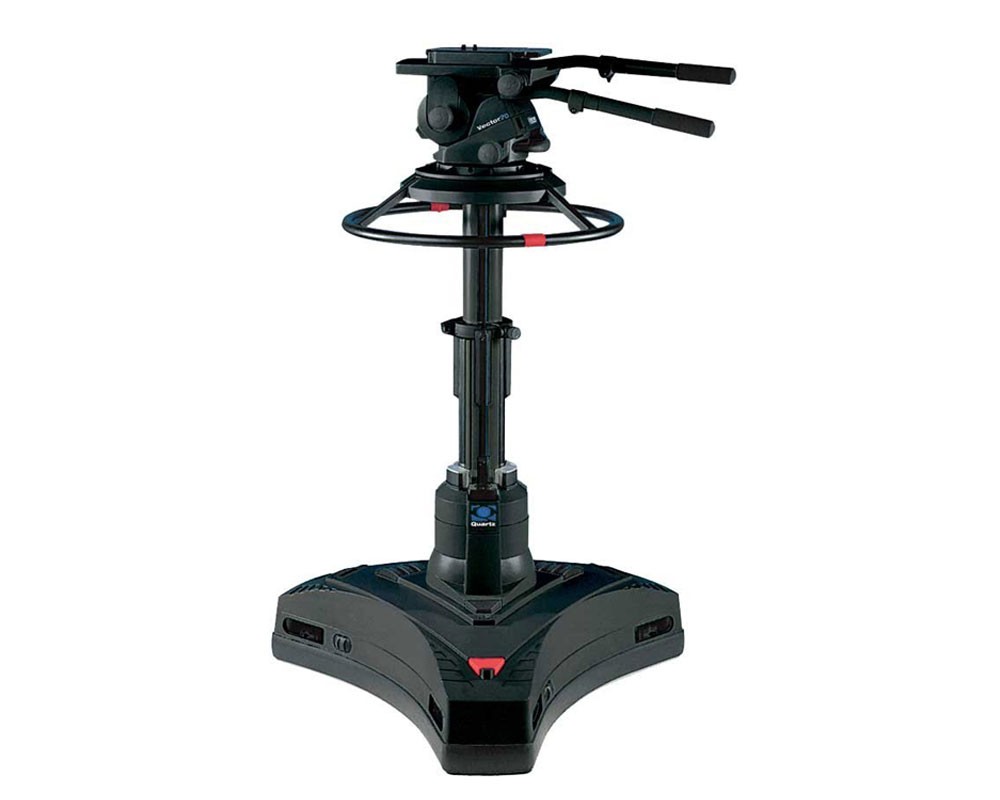

Vinten (3826-3) Quartz Two Pedestal

The Quartz Two Pedestal provides superior operational flexibility with a two-stage column, 77 cm / 30.3 "" on-shot stroke and 80 kg / 176.4 lbs maximum capacity. It can accommodate a wide range of camera, lens and teleprompter combinations, making it particularly suitable for studio productions.

The Quartz design offers precise crab and steer control from a central steering ring, together with the ability to accelerate smoothly and rapidly; enabling easy repositioning even in the tightest of sets. The design of the base offers maximum stability, a single foot brake gives extra control at all times, and the fully skirted base incorporates a cable guard system that is simply adjusted by three external knobs.

• Integral cable guard
• Detachable steering ring
• Single parking brake
• Low pressure pneumatic system

Specifications:
• Max. Capacity: 80 kg / 176.4 lbs [max. capacity includes trim weights]
• Height Range: 66 to 143 cm / 26 to 56"
• Weight: 88.9 kg / 187.4 lbs
• On-Shot Stroke: 77 cm / 30.3"
• Tracking Width: 108 cm / 42"
• Transit Width: 80 cm / 31.5"
• Wheel Diameter: 12.5 cm / 5"
• Detachable Steering Ring Diameter: 63.5 cm / 25"
• Trim Weights: 3.5 kg / 7.7 lbs
• Ground Clearance: 2 cm / 0.8"
• Colour: Black
