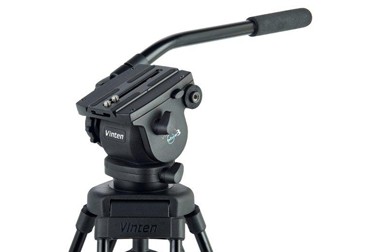

VINTEN Vision Blue3 Pan and Tilt Head

The Vision blue3 head. (Mfr # V4106-0001).

VINTEN

The Vision blue3 head and tripod system delivers effortless support, freeing you to focus on the filming. With the widest payload capacity in its class, the perfect balance and control is ideal for cameras weighing just 2.1kg when using the new Vision blueBridge.
The Vinten Vision blue3 offers outstanding quality of camera support with its infinitely adjustable Perfect Balance and Lubricated Friction (LF) drag technology, freeing you to focus on getting the best from your camera.The Vision blue3 system uses Pozi-Loc tripod for its excellent rigidity, minimising springback.




WEIGHT 6.9kg/15.2lbs (including pan bar, camera plate, bowl clamp and Vision blueBridge- floor spreader system weight)
DRAG MODE Calibrated infinitely adjustable LF drag system
TILT RANGE / ANGLE ±90°
COUNTERBALANCE Infinitely adjustable Perfect Balance
CAPACITY RANGE 3.0 – 6.6kg / 6.6-14.6lbs @ approx. 55 mm CofG / 2.1 – 6.6kg / 4.6-14.6lbs @ approx. 55mm CofG ( with vision blue bridge)




Head only (V4106-0001)

End entry camera plate supplied with ¼” screw and pin assembly, additional ¼” screw and 2 x ?” camera screws, fixed length pan bar, bowl clamp knob and multi-language operator guide.

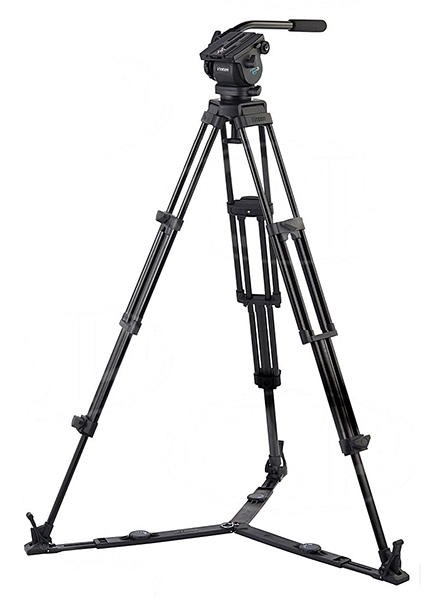

System with floor spreader ( VB3-AP2F)

  • 1 x Vision blue3 head (V4106-0001)
  • 1 x Two stage aluminium Pozi-Loc tripod (3819-3)
  • 1 x Floor Spreader (3363-3)
  • 1 x Soft Case (3358-3)

System with mid-level spreader (VB3-AP2M)

  • 1 x Vision blue3 head (V4106-0001)
  • 1 x Two stage aluminium Pozi-Loc tripod (3819-3)
  • 1 x Soft Case (3358-3)
  • 1 x LW Mid-Level Spreader (V4032-0001)

Vision blueBridge Camera accessory (V4106-1003)

  • 1 x Small camera adaptor (V4106-2004), 1 x 1/4" screw and pin assembly (V4045-1006), 1 x A/R Oring (Q001-093)

  •
