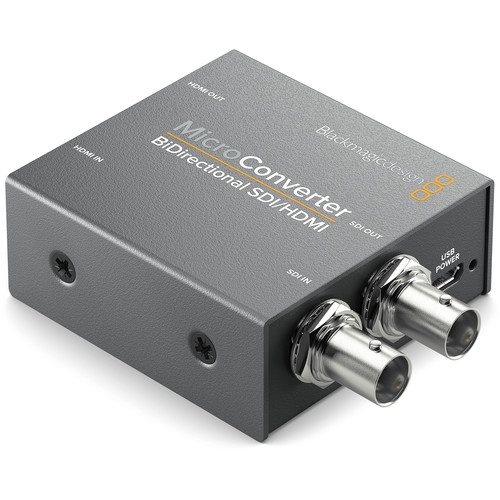

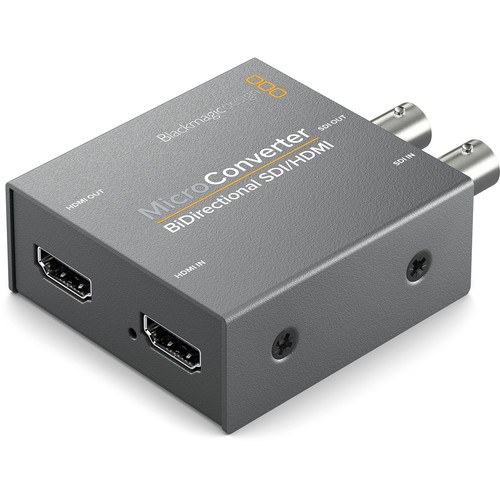

Blackmagic Design Micro Converter BiDirectional SDI/HDMI

Blackmagic Design

The Micro Converter BiDirectional SDI/HDMI from Blackmagic Design simultaneously converts SDI to HDMI and vice versa, supporting 3G/HD/SD-SDI video signals up to 1080p60. Mix and match your sources—each conversion can be a different standard. Reclocking on the SDI output reduces jitter, improving performance over longer cable lengths.

This pocket-sized converter features a sturdy metal housing, with power and signal LED status indicators. With an integrated micro-USB port, the BiDirectional SDI/HDMI converter may be easily connected to and powered by large-screen monitors, routers, laptops, or projectors.

Features

  • Simultaneous cross conversion between HDMI and SDI
  • Supports up to 1080p60 signals
  • Automatic signal detection
  • SDI reclocking improves performance over longer cable lengths
  • Powered via micro-USB port
  • Compact metal housing

Blackmagic Design CONVBDC/SDI/HDMI Specs

Connections
Video Input 1 x 3G/HD/SD-SDI
1 x HDMI type A
Video Output 1 x 3G/HD/SD-SDI
1 x HDMI type A
Other I/O 1 x Micro-USB
Standards
Supported Video Standards SDI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC SD: 525i 59.94
PAL SD: 625i 50

HDMI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC SD: 525i 59.94
PAL SD: 625i 50
SDI Compliance SMPTE 425M/424M/372M/296M/292M/259M
Color Precision SDI: 4:2:2
HDMI: 4:2:2
SDI Color Space SDI: YUV
HDMI: YUV
Operating System
Supported Operating Systems MacOS 10.12 Sierra
MacOS High Sierra 10.13 or later
Windows 8.1
Windows 10
Power
Power Consumption 2.5 W
Operational Voltage Range 4.4 to 5.25 VDC
Physical & Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Relative Humidity 0 to 90%, non-condensing
Dimensions 3.18 x 2.32 x 0.98" / 8.1 x 5.9 x 2.5 cm
Weight 6.13 oz / 174 g
