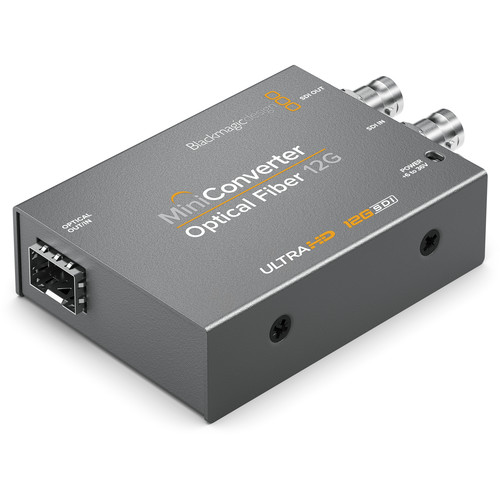

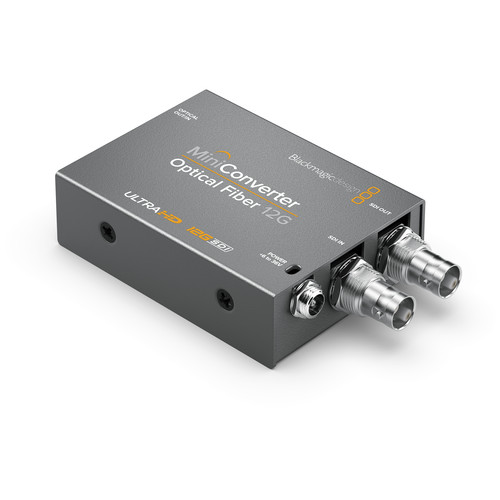

Blackmagic Design Mini Converter Optical Fiber 12G-SDI

Blackmagic Design

The Mini Converter Optical Fiber 12G-SDI from Blackmagic Design offers bidirectional, multi-rate SDI to optical fiber conversion capabilities with complete independence in each direction and support for up to DCI 4K25 and UHD 4K60 signals. This converter has one SFP optical fiber socket (requires a separate module), one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment.

Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the macOS/Windows-compatible converter software. This compact converter features a sturdy metal housing and includes a 12V universal power supply with a locking connection for added security.

Features

  • Bidirectional, multi-rate SDI to optical fiber conversion
  • Supports video signals up to DCI 4K25 and UHD 4K60
  • Automatic signal detection
  • Supports up to 16-channel embedded audio
  • Change settings with function switches or the macOS/Windows-compatible software
  • Universal power supply with locking connector
  • Rugged, compact metal housing
  • One SMPTE optical fiber SFP socket (requires separate module)
  • 12G/6G/3G-SDI input and output

Blackmagic Design CONVMOF12G Specs

Input
Video Input Connectors 1 x BNC (12G-SDI)
Input Video Format SDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
Embedded Audio Input SDI: 16-Channel
Output
Video Output Connectors 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI)
Output Video Format SDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
Embedded Audio Output SDI: 16-Channel
Standards
Video Standard Compliance SMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081
ITU -R BT.601
HDCP Support None
Connectivity
Expansion Slots 1 x SFP Slot
Power
Power Connector 1 x Barrel (6 to 36 VDC) Input
Power Consumption Power Supply: 2 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Operating Humidity 0 to 90%
General
Dimensions 4.33 x 2.32 x 0.9" / 109.98 x 58.93 x 22.86 mm
Weight 7.4 oz / 210 g
Packaging Info
Package Weight 0.925 lb
Box Dimensions (LxWxH) 5.8 x 4.7 x 2.75"
