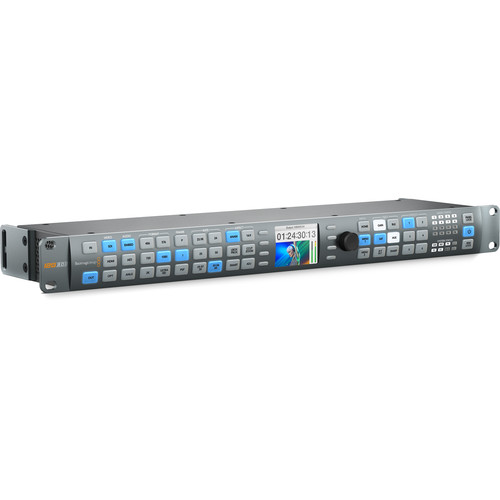

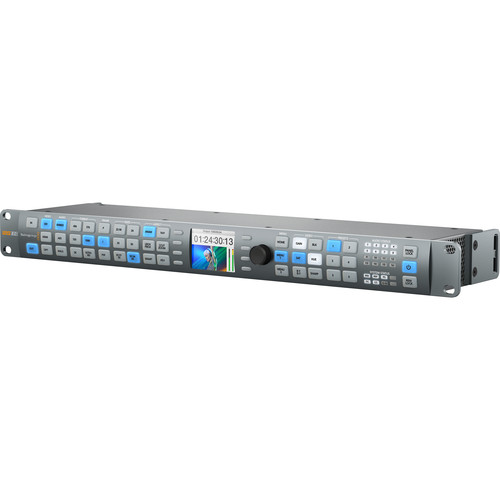

Blackmagic Design Teranex AV

Blackmagic Design

Built with professional A/V installations and live events in mind, the Blackmagic Design Teranex AV enjoys 1089 up, down, cross, and standards conversions for formats ranging from NTSC and PAL to 2K and UHD 4K video. Regardless of conversion, all processing is done in real-time with minimal latency of approximately two frames.

A bevy of input and output options are available for dealing with professional and consumer sources. SDI inputs accept SD, HD, 3G, 6G, and 12G-SDI, while the HDMI input is v2.0 compliant. An optional fiber connection can be populated by a separately available SFP cage. Embedded audio is accepted, as well as analog audio via XLR and RCA stereo inputs. Video outputs include SDI and HDMI as well as four extra SDI output for quad-link 4K output or four mirrored outputs. All conversions can be controlled via the comprehensive front panel buttons and menu navigation, or through Ethernet, if part of an installation.

Features

Aspect Ratio Conversion

Real-time variable and fixed aspect ratio conversions

Real-Time Video Processing

Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction, and proc amp control

Format Conversion

Real-time color space conversion, up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion

Still Store

Capture a video frame into non-volatile memory from the current input signal

Freeze Frame

Temporarilly freeze incoming live video

Test Patterns

  • SMPTE 75% Bars
  • Full-field color bars 75%
  • Convergence grid
  • Multi-burst
  • Black-burst

Output Switching

Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video

Blackmagic Design Teranex AV Specs

Inputs 2 x BNC, SD/HD/3G/6G/12G-SDI (inputs can be separate or unified for dual-link functionality)
1 x HDMI Type A, v2.0
1 x Optical fiber (optional)
1 x Stereo RCA, analog audio
2 x XLR, balanced analog audio, AES/EBU digital audio
1 x BNC, reference
1 x USB-C
1 x RJ45, Ethernet
Outputs 2 x BNC, SD/HD/3G/6G/12G-SDI (outputs can be separate or unified for dual-link functionality)
4 x BNC, SD/HD/3G-SDI (quad-link 4K output or replicated SDI output option)
1 x HDMI Type A, v2.0
1 x Optical fiber (optional, not available with dual-link operation)
1 x BNC, reference output
Format Support 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60
2048 x 1080p: 23.98/24
2048 x 1080PsF: 23.98/24
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
NTSC
PAL
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Metadata Support VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
Audio Sampling HD: 24-bit, 48 kHz
SD: 20-bit, 48 kHz
Video Sampling 4:2:2
Color Depth 10-bit
Color Space REC 601, REC 709
Operating System Support Mac OS X 10.10 or later
Windows 8.1, 10
Power Input 1 x IEC, 100-240 VAC, 50-60 Hz
Environmental Operating Temperature: 41 to 122°F / 5 to 50°C
Storage Temperature: -4 to 113°F / -20 to 45°C
Relative Humidity: 0-90%, non-condensing
Dimensions 19 x 1.75 x 5" / 48.3 x 4.4 x 12.7 cm
Weight 4.4 lb / 2 kg
