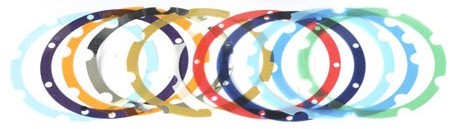

ZEISS Set of Colored Shims CP.2

The Zeiss Colored Shims are a set of 11 color-coded spacers of varying thickness designed for use with a Compact Prime CP.2 interchangeable-mount lens. When changing the mount (for example, from a PL to an F), it's crucial to have the proper flange focal distance. These shims fit inside a groove in the disassembled lens barrel and can be stacked, using a flat-bladed screwdriver or tweezers, in any combination to achieve the required thickness. These shims are in addition to those that come with the various Interchangeable Mount Sets.

Shim Colors & Thickness:

• Silver - 0.013mm
• Gold - 0.019mm
• Purple - 0.025mm
• Light Blue - 0.032mm
• Red - 0.038mm
• Blue - 0.051mm
• White - 0.064mm
• Green - 0.076mm
• Orange - 0.102mm
• Light Purple - 0.127mm
• Clear - 0.152mm
