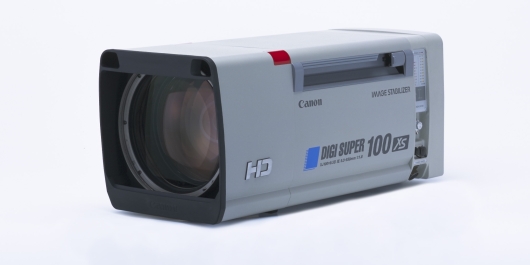

Canon DIGISUPER 100 xs
100x Telephoto Field Lens with advanced Image Stabilizer
A long-zoom lens featuring advanced optical, mechanical and digital technologies, plus a relatively modest size and weight, the DIGISUPER 100 delivers excellent operability and superb HDTV images.
- Power optics
- Internal focus
- Advanced Image Stabilizer
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
Zoom Ratio | 100x |
---|---|
Image size | 2/3'' |
Build-in Extender | 2.0x |
Focal Length Range | 9.3~930mm |
Focal Length Range (with extender) | 18.6~1860mm |
Maximum Relative Aperture (F-Number) | 1 : 1.7 at 9.3mm~296mm 1 : 4.7 at 930mm (Ramping Characteristic) |
Max. Relative Aperture (F-number) w/ext. | 1 : 3.4 at 18.6mm~592mm 1 : 9.4 at 1860mm (Ramping Characteristic) |
Angular Field of View | 54.6o (H) x 32.4o (V) at 9.3mm 0.59o (H) x 0.33o (V) at 930mm |
Angular Field of View with Extender | 28.9o (H) x 16.5o (V) at 18.6mm 0.3o (H) x 0.17o (V) at 1860mm |
MOD From Front of Lens | 3.0 Meter |
Scene Object Dimensions at MOD | 276.4 cm x 155.5 cm at 9.3mm 2.76 cm x 1.56 cm at 930mm |
Scene Obj. Dim at MOD w/ ext | 138.2 cm x 77.8 cm at 18.6 mm 1.38 cm x 0.78 cm at 1860mm |
Protection Filter | Standard |
Build-in Optical Image Stabilizer | Yes |
Crossover Type | Option |
--
