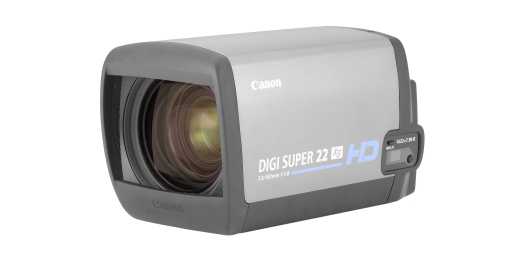

Canon DIGISUPER 22
Compact Studio Lens
A high-performance, cost-effective and compact HDTV Studio Lens, the DIGISUPER 22 xs attaches to a portable production camera without the necessity for a traditional support ‘sled’ apparatus.
- Power Optical System
- Internal focus
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
| Zoom Ratio | 22x |
|---|---|
| Image size | 2/3'' |
| Build-in Extender | 2.0x |
| Focal Length Range | 7.3 ~ 161mm |
| Focal Length Range (with extender) | 14.6 ~ 322mm |
| Maximum Relative Aperture (F-Number) | 1 : 1.8 at 7.3mm~111.5mm 1 : 2.6 at 161mm (Ramping Characteristic) |
| Max. Relative Aperture (F-number) w/ext. | 1 : 3.6 at 14.6mm~223mm 1 : 5.2 at 322mm (Ramping Characteristic) |
| Angular Field of View | 66.7o (H) x 40.6o (V) at 7.3mm 3.4o (H) x 1.9o (V) at 161mm |
| Angular Field of View with Extender | 36.4o (H) x 21.0o (V) at 14.6mm 1.7o (H) x 1.0o (V) at 322mm |
| MOD From Front of Lens | 0.8 Meter (10mm with Macro) |
| Scene Object Dimensions at MOD | 118.6 cm x 66.4 cm at 7.3mm 5.2 cm x 2.9 cm at 161mm |
| Scene Obj. Dim at MOD w/ ext | 59.1 cm x 33.2 cm at 14.6mm 2.6 cm x 1.5 cm at 322mm |
| Macro | Standard (Manual) |
| Crossover Type | Option |
--
