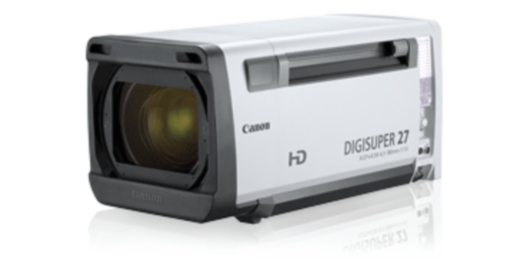

Canon DIGISUPER 27
Wide Angle Studio Lens
A high performance HD Studio Lens, the DIGISUPER features Canon’s Power Optical System with Internal Focus plus a precision digital servo system for unsurpassed studio imaging.
- Power Optical System
- Internal focus
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
| Zoom Ratio | 27x |
|---|---|
| Image size | 2/3'' |
| Build-in Extender | 2.0x |
| Focal Length Range | 6.5 ~ 180mm |
| Focal Length Range (with extender) | 13 ~ 360mm |
| Maximum Relative Aperture (F-Number) | 1 : 1.5 at 6.5mm~123mm 1 : 2.2 at 180mm (Ramping Characteristic) |
| Max. Relative Aperture (F-number) w/ext. | 1 : 3.0 at 13mm~246mm 1 : 4.4 at 360mm (Ramping Characteristic) |
| Angular Field of View | 72.9o (H) x 45.1o (V) at 6.5mm 3.1o (H) x 1.7o (V) at 180mm |
| Angular Field of View with Extender | 40.5o (H) x 23.5o (V) at 13mm 1.5o (H) x 0.9o (V) at 360mm |
| MOD From Front of Lens | 0.6 Meter (10mm with Macro) |
| Scene Object Dimensions at MOD | 106.1 cm x 59.7 cm at 6.5mm 3.8 cm x 2.1 cm at 180mm |
| Scene Obj. Dim at MOD w/ ext | 53.1 cm x 29.9 cm at 13 mm 1.9 cm x 1.1 cm at 360mm |
| Macro | Option (Remote) |
| Protection Filter | Option |
| Crossover Type | Option |
--
