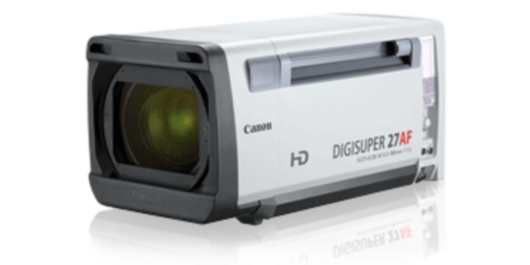

Canon DIGISUPER 27AF
Wide Angle Studio Lens with advanced Auto Focus
The DIGISUPER 27 AF Studio Lens is optimised for studio production. It features outstanding HD optical performance, including advanced Auto Focus, for superb quality HDTV imagery.
- Advanced Auto Focus technology
- Power Optical System
- Internal focus
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
Zoom Ratio | 27x |
---|---|
Image size | 2/3'' |
Build-in Extender | 2.0x |
Focal Length Range | 6.5 ~ 180mm |
Focal Length Range (with extender) | 13 ~ 360mm |
Maximum Relative Aperture (F-Number) | 1 : 1.5 at 6.5mm~123mm 1 : 2.2 at 180mm (Ramping Characteristic) |
Max. Relative Aperture (F-number) w/ext. | 1 : 3.0 at 13mm~246mm 1 : 4.4 at 360mm (Ramping Characteristic) |
Angular Field of View | 72.9o (H) x 45.1o (V) at 6.5mm 3.1o (H) x 1.7o (V) at 180mm |
Angular Field of View with Extender | 40.5o (H) x 23.5o (V) at 13mm 1.5o (H) x 0.9o (V) at 360mm |
MOD From Front of Lens | 0.6 Meter (10mm with Macro) |
Scene Object Dimensions at MOD | 106.1 cm x 59.7 cm at 6.5mm 3.8 cm x 2.1 cm at 180mm |
Scene Obj. Dim at MOD w/ ext | 53.1 cm x 29.9 cm at 13 mm 1.9 cm x 1.1 cm at 360mm |
Macro | Option (Remote) |
Protection Filter | Option |
Auto Focus System | Yes |
--
