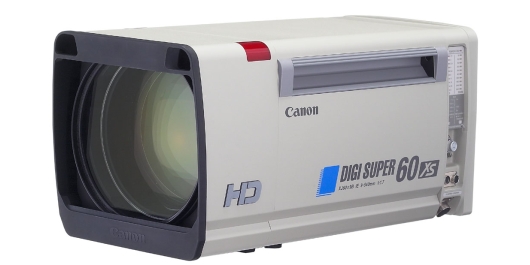

Canon DIGISUPER 60
Affordable 60x Field Lens
An affordable, long focal length Field Lens, the DIGISUPER 60 xs features powerful optics with internal focus. Ideal for capturing HDTV and SDTV images in the field, large studios or special venues.
- Focal length 9.0mm to 540 mm
- Power optics
- Internal focus
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
| Zoom Ratio | 60x |
|---|---|
| Image size | 2/3'' |
| Build-in Extender | 2.0x |
| Focal Length Range | 9~540mm |
| Focal Length Range (with extender) | 18~1080mm |
| Maximum Relative Aperture (F-Number) | 1:1.7 at 9mm~306mmat 1:3.0 at 540mm (Ramping Characteristic) |
| Max. Relative Aperture (F-number) w/ext. | 1:3.4 at 18mm~612mm 1:6.0 at 1080mm (Ramping Characterstic) |
| Angular Field of View | 56.1° (H) x 33.4° (V) at 9mm 1.02° (H) x 0.57° (V) at 540mm |
| Angular Field of View with Extender | 29.9° (H) x 17.1° (V) at 18mm 0.51° (H) x 0.29° (V) at 1080mm |
| MOD From Front of Lens | 2.8 Meter |
| Scene Object Dimensions at MOD | 265.1 cm x 149.1 cm at 9mm 4.5 cm x 2.5 cm at 540mm |
| Scene Obj. Dim at MOD w/ ext | 132.6 cm x 74.6 cm at 18mm 2.3 cm x 1.3 cm at 1080mm |
| Protection Filter | Option |
| Crossover Type | Option |
--
