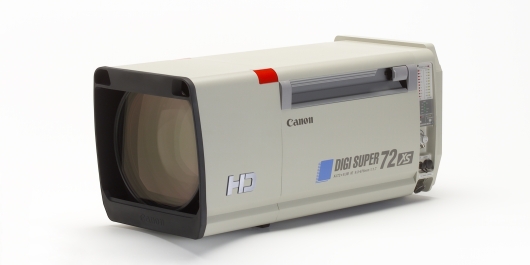

Canon DIGISUPER 72 xs
72x Standard Field Lens
The DIGISUPER 72 xs combines long focal length with affordability. Ideal for high definition sports and entertainment event coverage, it includes powerful optics and a precision digital servo system.
- Power optics
- Internal focus
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
Zoom Ratio | 72x |
---|---|
Image size | 2/3'' |
Build-in Extender | 2.0x |
Focal Length Range | 9.3~675mm |
Focal Length Range (with extender) | 18.6~1350mm |
Maximum Relative Aperture (F-Number) | 1 : 1.7 at 9.3mm~333mm 1 : 3.45 at 675mm (Ramping Characteristic) |
Max. Relative Aperture (F-number) w/ext. | 1 : 3.4 at 18.6mm~666mm 1 : 6.9 at 1350mm (Ramping Characteristic) |
Angular Field of View | 54.6o (H) x 32.4o (V) at 9.3mm 0.81o (H) x 0.46o (V) at 675mm |
Angular Field of View with Extender | 28.9o (H) x 16.5o (V) at 18.6mm 0.41o (H) x 0.23o (V) at 1350mm |
MOD From Front of Lens | 2.8 Meter |
Scene Object Dimensions at MOD | 255.6 cm x 143.8 cm at 9.3mm 3.6 cm x 2.0 cm at 675mm |
Scene Obj. Dim at MOD w/ ext | 127.9 cm x 71.9 cm at 18.6mm 1.8 cm x 1.0 cm at 1350mm |
Protection Filter | Option |
Crossover Type | Option |
--
