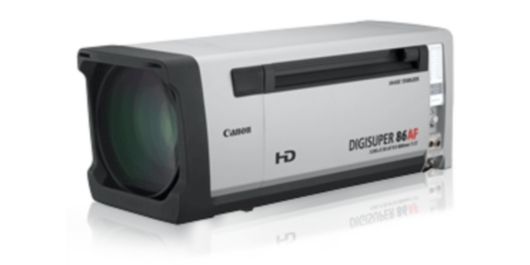

Canon DIGISUPER 86AF
Telephoto Field Lens with advanced Image Stabilizer and Auto Focus
The DIGISUPER 86AF long-field lens features powerful Auto Focus technology and superior Image Stabilisation. It achieves exact focus at extreme telephoto distances, capturing HDTV in superb detail.
- Autofocus technology
- Power optics
- Internal focus
- Advanced Image Stabilizer
- Precision digital servo system
- Constant Angle Focusing System; 32-bit CPU
- Robust ergonomic design
- Ecological design
- Crossover technology options; 4-position turret
| Zoom Ratio | 86x |
|---|---|
| Image size | 2/3'' |
| Build-in Extender | 2.0x |
| Focal Length Range | 9.3~800mm |
| Focal Length Range (with extender) | 18.6~1600mm |
| Maximum Relative Aperture (F-Number) | 1 : 1.7 at 9.3mm~340mm 1 : 4.0 at 800mm (Ramping Characteristic) |
| Max. Relative Aperture (F-number) w/ext. | 1 : 3.4 at 18.6mm~680mm 1 : 8.0 at 1600mm (Ramping Characteristic) |
| Angular Field of View | 54.6o (H) x 32.4o (V) at 9.3mm 0.69o (H) x 0.39o (V) at 800mm |
| Angular Field of View with Extender | 28.9o (H) x 16.5o (V) at 18.6mm 0.34o (H) x 0.19o (V) at 1600mm |
| MOD From Front of Lens | 3.0 Meters |
| Scene Object Dimensions at MOD | 276.4 cm x 155.5 cm at 9.3mm 3.22 cm x 1.81 cm at 800mm |
| Scene Obj. Dim at MOD w/ ext | 138.2 cm x 77.8 cm at 18.6mm 1.61 cm x 0.91 cm at 1600mm |
| Protection Filter | Standard |
| Build-in Optical Image Stabilizer | Yes |
| Auto Focus System | 'Yes |
--
