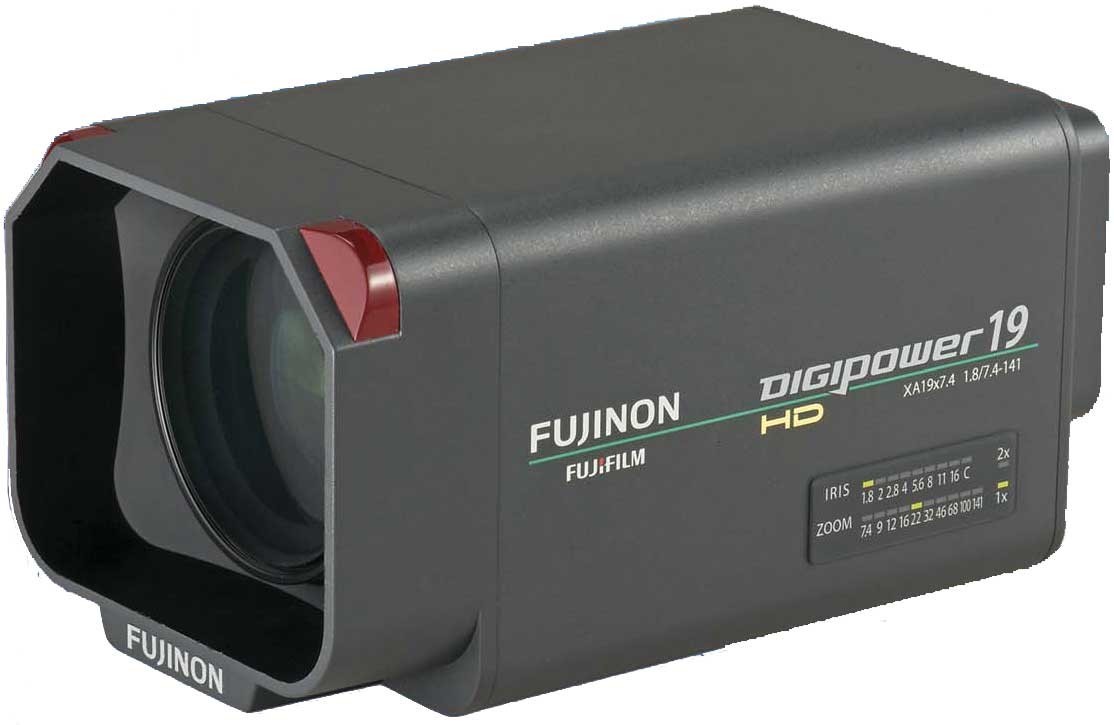

FUJINON XA19x7.4BES

Studio / Field Lenses

The XA19x7.4BES-D8 is ideally suited to live studio production, such as live news, sports, and entertainment. Focus breathing compensation makes it idea for episodic production. With features like RS-232 control, 16bit encoders, and tally lights, it can also be used in conjunction with virtual reality studio sets and robotic camera systems. The XA19x7.4BES-D8 has advanced F.I.N.D. diagnostics to keep it working reliably, as well as a short “MOD” or minimum object distance of 0.55mm, which allows shooting at closer distances.

With the 2.2X extender as standard, the lens gives users zoom capabilities and reach comparable to that of FUJINON HA23X lenses. The inherent advanced optics also compensate for aberrations throughout the entire zoom range, with dramatic reduction in geometric distortion on the wide side of the focal range for superior optical performance.




WEIGHT 4.0 kg
ZOOM RATIO 19x
DIMENSIONS (HxWxL) 140 ? 153 ? 268 mm
FOCAL LENGTH 1x - 7.4 - 141 mm, 2x - 16.3 - 310 mm
CAMERA MOUNT 2/3"
MINIMUM OBJECT DISTANCE 0.55 m
EXTENDER 2.2x
MAXIMUM RELATIVE APERTURE 1 : 1.8 (7.4 - 98 mm), 1 : 2.6 (141 mm)




Standard Manufacturer's Warranty
