Zeiss Micro 4/3-mount - CP.2 - Makro and Close Focus Lenses

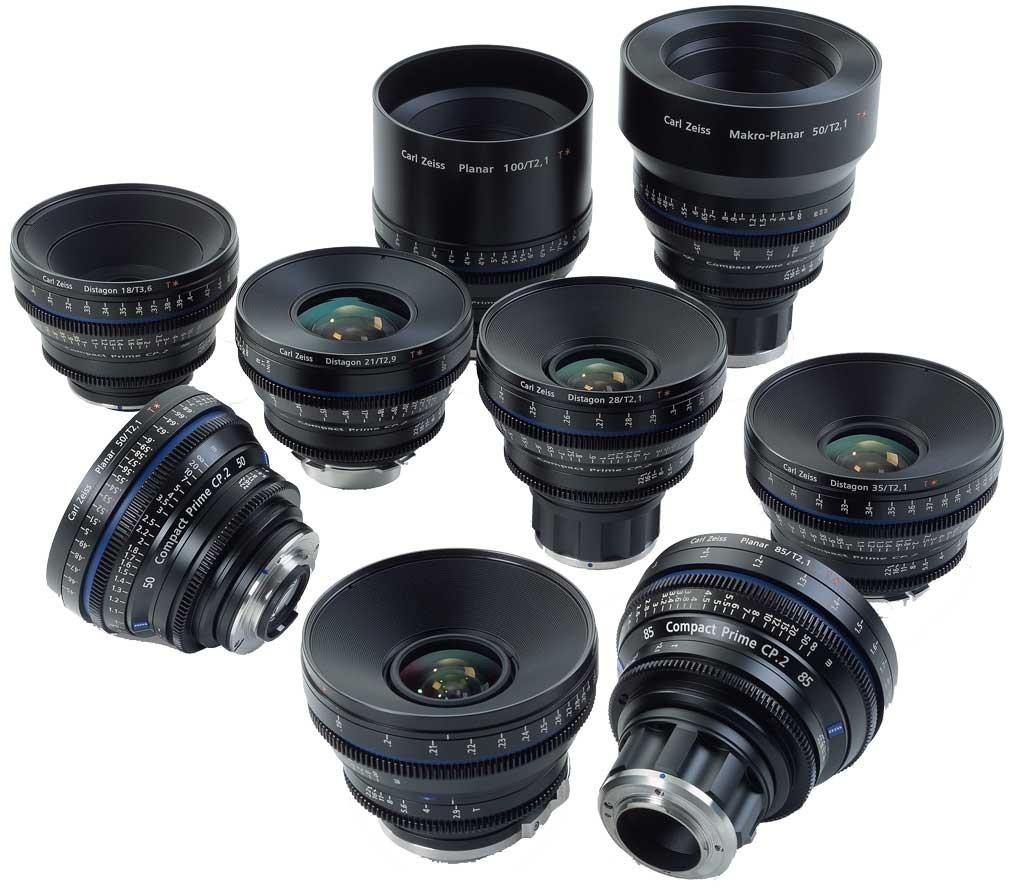

The Compact Prime CP.2 lenses are the latest members of the ZEISS family of lenses for digital and film cameras. This second generation of the Compact Prime lenses now delivers even greater flexibility by introducing interchangeable mounts that allow the lenses to be used with a wide range of cameras from traditional cine to HDSLR systems.

• Interchangeable mount allows a mix of HDSLR systems with traditional cine cameras
• Full-frame coverage (24 x 36mm ) for focal lengths 21 to 100 mm, including a 50 mm macro lens
• Common aperture of T2.1 for the standard lens set
• No need for adapter solutions anymore
• Four different mounts available (PL, EF, F and MFT mount)
• High stability due to support bracket, which is included for additional lens stability
• Sweet spot effect with APS-C sensors

Micro 4/3-Mount
in Metric:
Compact Prime CP.2 50/T2.1 Makro T* - meter - Ref. No. 1889-106
Compact Prime CP.2 100/T2.1 CF T* - meter - Ref. No. 1889-099

in Imperial:
Compact Prime CP.2 50/T2.1 Makro T* - feet - Ref. No. 1889-107
Compact Prime CP.2 100/T2.1 CF T* - feet - Ref. No. 1889-102

Technical Data:

Macro

Aperture

CFD

AOV

Weight

EF

PL

F

MFT

CP.2 50mm/T2.1	T2.1 – 22	0.24	27.3°	1.35 kg
CP.2 100mm/T2.1 CF**	T2.1 – 22	0.7	14.7°	1.49 kg

All Compact Prime CP.2 lenses cover the full-frame image format (24 x 36 mm), ANSI Super 35 and Normal 35 image format, except the CP.2 18mm/T3.6.

CFD: Close Focus Distance from film plane
AOV: Angle of View, diagonal
EF: EF Bayonet Mount supported
PL: PL Bayonet Mount supported
F: F Bayonet Mount supported

**CF: Close Focusing capability. With the CP.2 100 you can go closer to the object you want to capture while still having a sharp image. The closest distance to the object with a CP.2 100 CF is 0.7m (2’6 ft).
