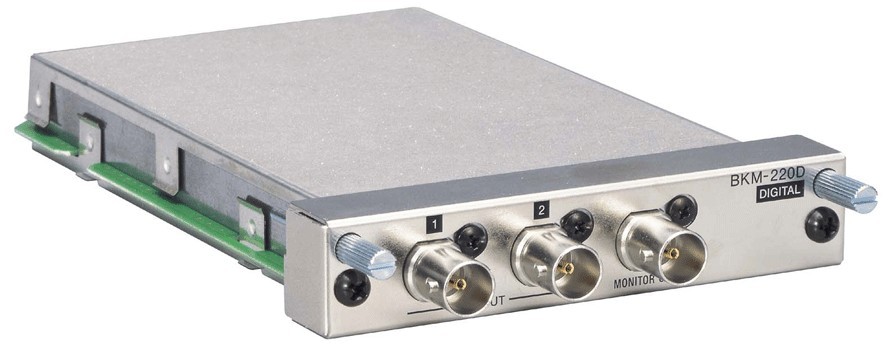

Sony BKM-220D
4:2:2 Sdi Input Adaptor
SDI 4:2:2 Input Adaptor main unit providing video input and output connectors for the main unit and a decoder for serial digital component signals. Features Decoder for serial digital component signals. Serial digital input and output signal connector.
| WEIGHT | Approx. 250 g (9 oz) |
|---|---|
| OUTPUT IMPEDANCE | 75-ohms unbalanced |
| EXTERIOR DIMENSIONS | 100 x 20 x 162 mm (4 x 13/16 x 6 ? inches) |
| OUTPUTS | Signal Amplitude: 800 mVp-p |
| HUMIDITY | 0% to 90% (no condensation) |
| STORAGE TEMPERATURE | -10 |
| SAMPLING FREQUENCY | Y/R-Y/B-Y: 13.5 MHz |
| OPERATING TEMPERATURE | 0 |
| QUANTIZATION | 10bits/sample |
| MINIMUM OBJECT DISTANCE | Transmission: 200 m (approx. 656 ft) max. (When using 5C-2V coaxial cables (Fujikura. Inc.) or equivalent.) |
| PRESSURE | Operating & Storage: 700hPa to 1060hPa |
| VOLTAGE | +5 V (supplied from the main unit) |
| POWER CONSUMPTION | Approx. 1.5 W |
