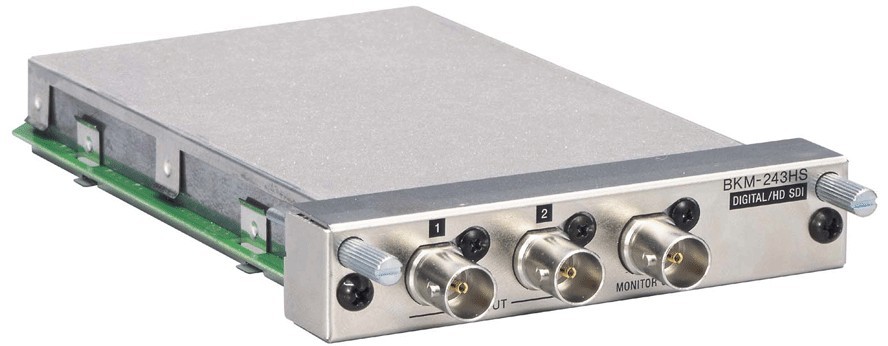

Sony BKM-243HS
HDSDI/4:2:2 SDI Input Adaptor. (Mfr # BKM-243HS)
HD SDI & SDI Input Adaptor providing video input and output connectors for the main unit and a decoder for HD/D1 serial digital component signals. Features Decoder for serial digital component signals. Serial digital input and output signal connector.
| INPUTS | Digital: BNC x 2, with monitor output connector |
|---|---|
| WEIGHT | Approx. 250 g (9 oz) |
| OUTPUT IMPEDANCE | 75-ohms unbalanced |
| EXTERIOR DIMENSIONS | (WxHxD) 100 x 20 x 162 mm (4 x 13/16 x 6 ? inches) |
| OUTPUTS | Signal Amplitude: 800 mVp-p |
| HUMIDITY | 0% to 90% (no condensation) |
| STORAGE TEMPERATURE | -10 |
| SAMPLING FREQUENCY | D1-SDI: Y/R-Y/B-Y: 13.5 MHz HD-SDI: Y/PB/PR: 74.25 MHz |
| OPERATING TEMPERATURE | 20 |
| QUANTIZATION | 10bits/sample |
| PRESSURE | 700 hPa to 1060 hPa |
| VOLTAGE | +3.3 V, +5 V (supplied from the main unit) |
| POWER CONSUMPTION | Approx. 2 W |
