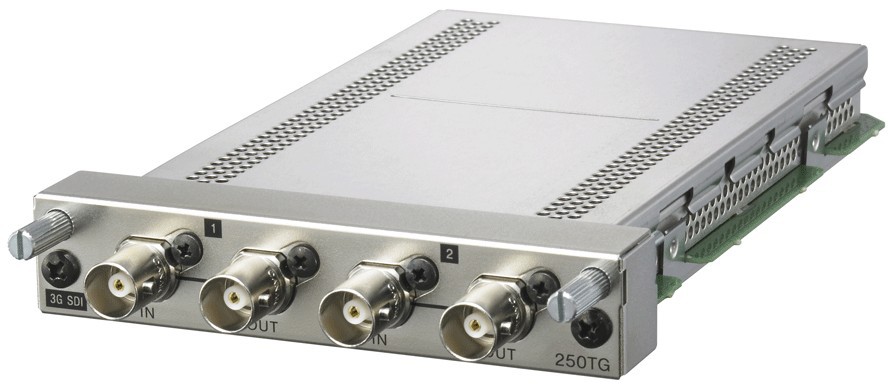

Sony BKM-250TG
3G/HD/SD-SDI Input Adaptor
The BKM-250TG 3G-SDI interface board is compliant with the SMPTE 425 standard and requires only one single SDI cable to transmit up to 10-bit 4:2:2 1080P/60P video signals. This optional 3G-SDI interface offers a simple cabling solution for groups of video equipment rack-mounted behind an editing room.
| WEIGHT | Approx. 270g (9.5 oz) |
|---|---|
| DIMENSIONS (WXHXD) | 100 x 20 x 162 mm (4 x 13/16 x 6 1/2 inches) |
| HUMIDITY | 0% to 90% (no condensation) |
| STORAGE TEMPERATURE | -20 |
| OPERATING TEMPERATURE | 0 |
| PRESSURE | Operating & Storage: 700 hPa to 1060 hPa |
| VOLTAGE | +5 V, +3.3 V (supplied from the main unit) |
| POWER CONSUMPTION | Approx. 4 W |
