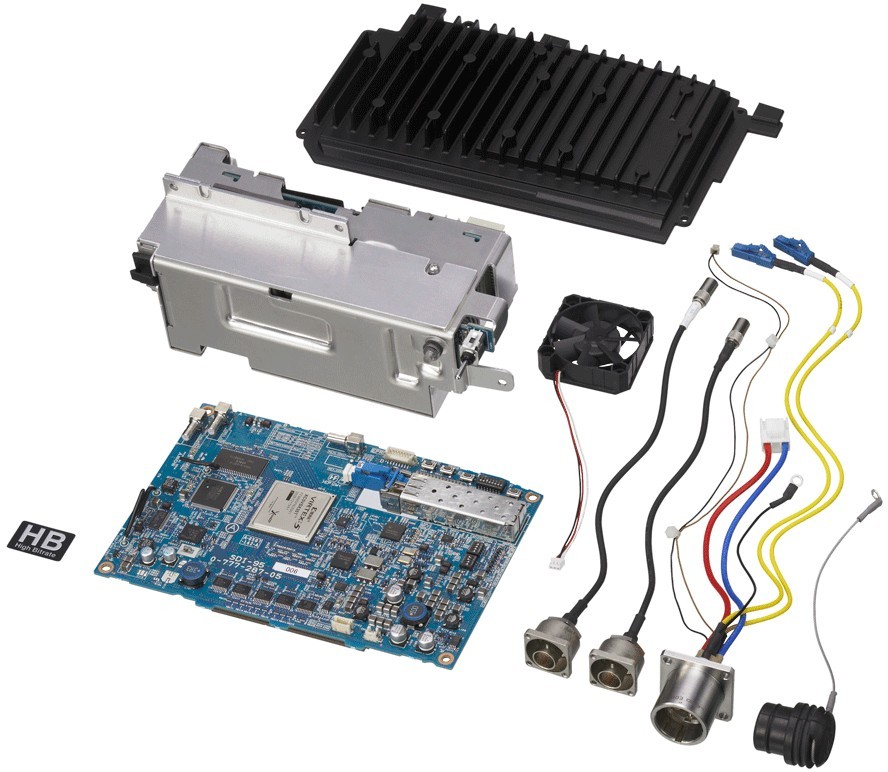

Sony HKC-HB15

The HKC-HB15 Fibre Transmission Unit is an upgrade for the HDC1500/1500R camera that doubles the signal transmission bitrate to 3G (3 Gigabit/second). Cameras with this enhanced capability are able to work as a complete 1080/50p or 60p production system.

Upgraded cameras and CCUs will be ready for use in future 3G and 3D video environments.

• Supports 1080/50p, 60p signal output
- 3G High Bitrate transmission between the Camera and CCU and a number of useful new capabilities

• Supports RGB 444 signal output from the CCU*
- High Bitrate transmission between the Camera and CCU. Supports RGB 444 signal output from the CCU*

• Trunk Line operation
- The new high bitrate capability can be used in Trunk Line mode to connect two cameras to two CCUs via single cable.

Alternatively, two cameras can be can be connected to one CCU, where the Sub camera's remote signal is added to that of the the Main camera. Both can be controlled separately from RCPs. Tally, Intercom and Audio do not function on the Sub camera in this operational mode.

• Supports HD SDI Prompter signal transmission
- The HKC-HB15 can be configured to supply a signal to an HD SDI prompter for high quality prompting, or it can supply a floor monitor system

Benefits:
• Support 1080/50P, 60P signal output
- 3G High Bit Rate transmission between CAM-CCU to support 1080/50P, 60P signal output from CCU?with SMPTE425M Single Link option capability

• Support RGB 444 signal ouput.
- 3G High Bit Rate transmission between CAM-CCU to support RGB 444 signal output from CCU

• Trunk Line Operation
- Trunk Line Operation provides Dual Camera System 2CAM-2CCU or Sub-Camera system 2CAM- 1 CCU operation, which can offer less cabling operation.

• Support HD SDI Prompter signal transmission
- HD SDI prompter can be configured, which is useful as high quality prompter or floor monitor system.
