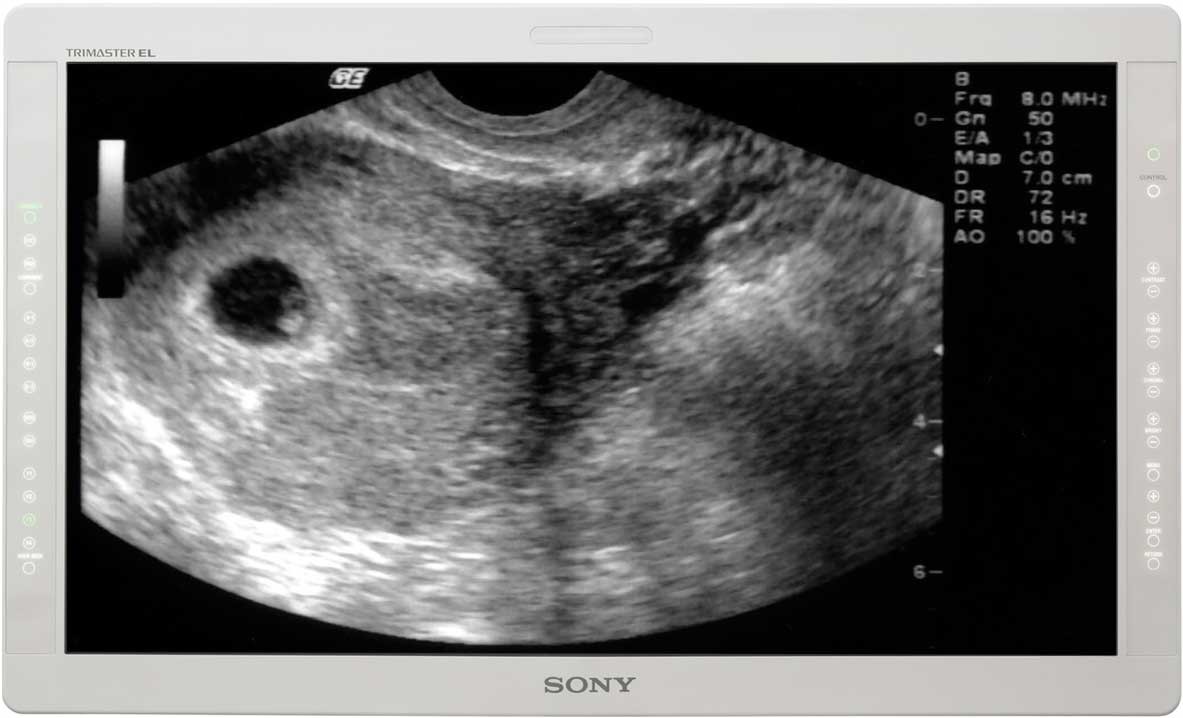

SONY PVM-2551MD
24.5-inch Full HD Medical OLED monitor
A higher standard in medical imaging with Sony OLED
The PVM-2551MD features Sony’s unique Super Top Emission OLED technology. The 24.5-inch Sony Medical monitor has full HD resolution (1,920 x 1,080 pixels) with 10-bit signal processing for accurate colour management. The monitor incorporates the revolutionary TRIMASTER EL technology. This maximises the performance of professional flat-screen displays. The PVM-2551MD thereby achieves an outstanding image performance, a wide colour scale and an extremely good black level.
IDEAL FOR MEDICAL APPLICATIONS
The PVM-2551MD is particularly suited for medical applications such as flexible and rigid endoscopy and surgical microscopy. The high resolution, improved contrast (compared to LCD) and exact colour reproduction are intended to help medical personnel to arrive at swifter and more accurate diagnoses. The monitor is housed in a lightweight white casing that is suitable for the requirements of a medical environment.
| SIZE | Picture: 623.4 mm (24 5/8 inches) (diagonal) |
|---|---|
| VIEWING ANGLES | 89 |
| ASPECT RATIO | 16:09 |
| WEIGHT | 8.1 kg (17 lb 14 oz) (when the optional stand and the input adaptor are not installed) |
| DIMENSIONS (WXHXD) | 618.4 x 376 x 102.1 mm (24 3/8 x 14 7/8 x 4 1/8 inches) (without a stand) |
| DISPLAY SIZE (VIEWING AREA) | (HxV) 543.4 x 305.6 mm (21 1/2 x 12 1/8 inches) |
| HUMIDITY | 30% to 85% (no condensation) |
| STORAGE TEMPERATURE | ?20 |
| OPERATING TEMPERATURE | 0 to 35 |
| DIMENSIONS | (WxHxD) 618.4 x 471.5 x 302 mm (24 3/8 x 18 5/8 x 12 inches) (with SU-560 optional stand) |
| POWER SUPPLY | AC Adaptor (Sony, AC-110MD) AC IN: 100 V to 240 V, 50/60 Hz, 1.53 A to 0.58 A DC OUT: 24 V/5.0 A, 5 V/0.060 A |
| PRESSURE | 700 to 1060 hPa |
| PANEL DRIVE | RGB 10-bit |
| PANEL | OLED panel |
| POWER CONSUMPTION | Approx. 135 W (max.), Approx. 80 W (average power consumption in the default status) |
| POWER REQUIREMENT | OLED monitor (PVM-2551MD) DC IN: 24 V/5.0 A, 5 V/0.030 A (Supplied from AC adaptor) |
| PIXEL RESOLUTION | (HxV) 1920 x 1080 pixels (Full HD) |
• Standard Manufacturer's Warranty
• AC adaptor (AC-110MD) (1)
• AC power cord (1)
• AC plug holder (2)
• Instructions for Use (1)
• CD-ROM (1)
• Using the CD-ROM manual (1)
• Quick reference (1)
• When You First Use The Monitor (1)
• Sales company guide (1)
