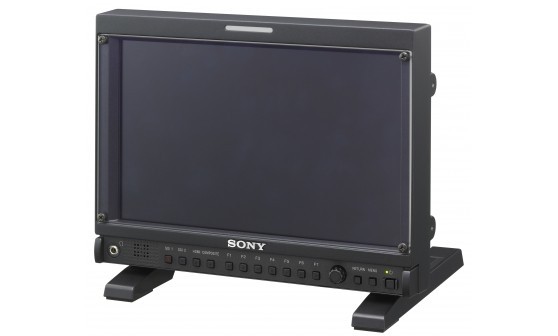

Sony LMD-941W

The LMD-941W is a 9-inch*, Full HD resolution (1920 x 1080 pixels) high performance LCD monitor incorporating 10-bit signal processing and Sony’s unique ChromaTRU™ technology to deliver superb picture performance and consistency. It also offers a convenient compact size with the mobility and smart functions required for both indoor and outdoor use. The LMD-941W is ideal for a wide range of professional monitoring applications, including use in an editing studio, for outside broadcast, acquisition, field production, and much more.

Features

Full HD 1920x1080 pixels IPS LCD panel with LED backlight
The full HD resolution LCD panel delivers crisper images and allows users easier picture evaluation.

Two 3G/HD/SD-SDI inputs
The LMD-941W is equipped with standard interfaces including 3G/HD/SD-SDI (x2) inputs, HDMI (x1) interface and composite input (x1).

Camera focus function
The camera focus function worksin various colours to ease camerafocus alignment.

Intra-Field I/P mode
Full HD images via SDI input can be reproduced naturally with process latency of less than one field.

Mobility and flexibility
The various range of accessory items further increases user flexibility and convenience. The retractable handle allows users to carry this monitor anytime, anywhere, andthe supplied arm-mount bracket makes it easy to mount this monitor into a camera system.

Wave form monitor and vector scope
The combination of the vector scope and wave form monitor functions allows simple measurement without additional measurement equipment.

Colour temperature
Colour temperatures of D93, D65, or a USER preset value can be selected.

Auto white adjustment
The LMD-941W monitor employs a software-based colour temperature (white balance) calibration function, which is called “Monitor_AutoWhiteAdjustment”. Combined with a PC and commercially available calibration tools*, this function enables simple adjustment of the monitor’s white balance.
The Konica Minolta CA-210/CA-310/CS-200, DK-Technologies PM5639/06, X-Rite i1 Pro/i1 Pro2, Photo Research PR-655/670, Klein K-10, and JETI Specbos 1211.

Robust, light-weight, and compact body
Incorporating a light-weight and compact aluminium diecast body with a detachable AR-coated protection panel, this model is flexible enough to change style according to user requirements: with or without stand (which is easily detachable), tilted on a stand (15-degree slant), rack-mounted, or set on a camera pedestal.

Mounting flexibility
Using the optional MB-531 mounting bracket with a 10-degree-forward and 10-degree-backward nonstop-tilt capability, two units can be installed side by side in a 19-inch EIA standard rack.

Optional ENG kit VF-510
For use in ENG and EFP field, the optional VF-510 ENG Kit provides a viewing hood, carrying handle, and connector protector.

AC/DC operations
The LMD-941W can be operated with two-way power supplies: DC 12 V and AC via the attached dedicated AC adaptor.
