Sony MVS-6530

MVS Series SD / HD switcher with 48 inputs and 32 outputs
The MVS-6530 production switcher is ideally suited for medium-size productions. The switcher comes with sophisticated capabilities such as 3x mix effects (M/E), 4x keyers per M/E, each with the MVS high-performance chromakey, 8x keyers in P/P bank, 2x internal channels of DME, 2.5D resizers, colour correction, and more. With the standard multi-viewer output, you save space on additional monitoring, enabling a reduction in your total system cost.

Advanced control panel
The control panel incorporates an attractive black design with OLED mnemonic displays for optimal visibility. Its operation is as user-friendly and intuitive as you expect of the MVS family. The self-contained 4RU processor offers simple configuration, and is a logical choice for small production facilities that have limited installation space but refuse to compromise on quality.

• New control panel for convenient operability

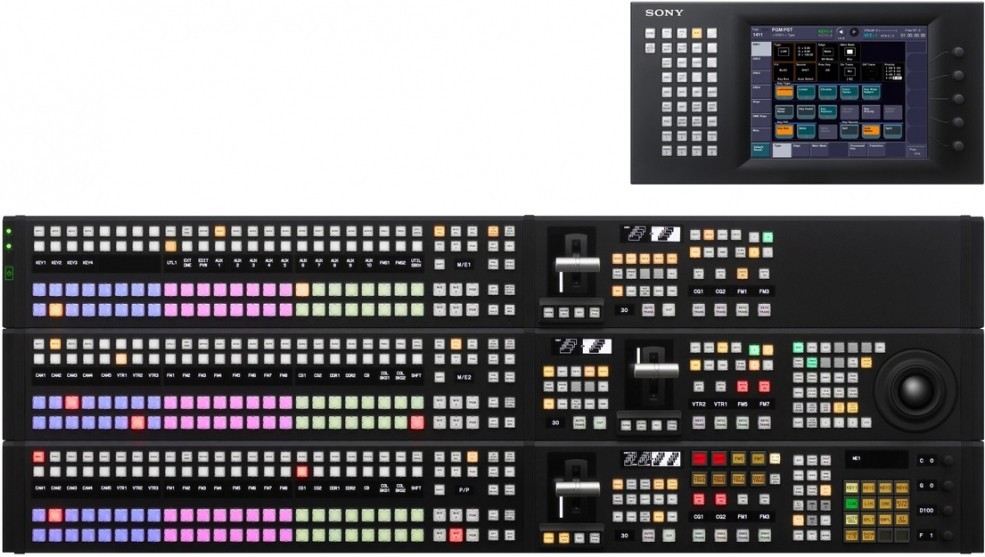

The MVS-6530 switcher features an ICP-6530 control panel. The matt-black panel is designed for easy operation in a fixed configuration. The design is based on the proven CCP style, and experienced operators will feel instantly at home. Additionally, OLED source name displays and RGB colour source buttons are included for optimal visibility and user-friendly operation.

• Creative M/E functionality
The MVS-6530 is equipped with four keyers on each M/E bus. These provide sophisticated layering options inside the M/E bus. The majority of these keyers also include a resize function for effective graphics manipulation (size, position, and rotation). Separate from the main fader, each keyer includes its own auto-transition controls, which allow users to insert or remove keys individually with independent wipes and dissolves. For further flexibility, each keyer also offers chromakeying and colour vector keying, eliminating restrictions of selectable key types.

• Multi-program mode
Each M/E bus in the MVS system can be configured to operate in multi?program mode. This facility provides four independent program outputs on each M/E. Each separate program O/P can then be configured with any combination of M/E keyers. In addition to the expanded program O/Ps, clean and key as well as M/E PVW signals are still produced. An extended function of this, multi-program 2 mode (optional), expands the use of the M/E banks and provides complete dual operation (main/sub) from a single M/E bus. This mode is especially convenient when broadcasting sports for two different destinations (for home and away teams) simultaneously, or in multiple languages.

• 2 resizers per M/E bank and 2.5D DME
A powerful resizer function is provided that gives simple 2.5D DMEeffects for half the keyers in the MVS-6530. With adjustable parameters such as size, position, and aspect, as well as mosaic and defocus effects, this functionality is very useful for optimizing the on screen composition.These resizers can also be activated for clip transitions, and the parameters can be memorized as part of a switcher snapshot, keyframe,or macro effect. All these effects can be created without the use of an optional DME, bringing great advantages for both simple operation and minimized system cost.

• Range of background transition effects
All MVS family switchers provide clip transition effects that enable transition, together with audio, using a frame memory sequence. During a clip transition, a computer-generated image, such as a logo, moves across the picture from one side to the other, while the transition is performed behind the image. This effect is useful for sports broadcasting. Although highly sophisticated, the effect can be performed with simple settings. Various types of transition such as Mix, Wipe, DME Wipe, and Preset Colour Mix can be applied in a background transition according to the motion of the clip. A transition can be operated both backwards and forwards with the fader lever.

• Colour correction for each input and AUX output
The MVS-6530 switcher provides primary colour correction for allinputs and AUX bus outputs.

• Enhanced frame memory system
The MVS-6530 provides an internal high-capacity frame store with the ability to handle both individual images (stills) and animation sequences (clips). Each frame memory card supports eight-channel playback from on-board RAM storage, and images can be imported via Ethernet or USB connections. Audio data is also supported. Individual frame memory images or animation sequences can be instantly viewed and recalled via touch-screen menu operation.

• Two channel multi-viewer system
The MVS-6530 provides multi-viewer outputs directly from the main processor chassis. This cuts down on the need for expensive external multi-viewers. Each multi-viewer output can be set in either 10- or 4-way split operation, and signals are delegated to each separate pane accordingly. The multi-viewer also supports switcher name and border tally indicators.

• 48 inputs and 32 outputs configuration
The MVS-6530 features 48 BNC primary inputs and 32 BNC assignable outputs.

• Easy-to-program macros
Using the Flexi-Pad or 10-key PAD module, you can record operation sequences, then store and assign them to any desired button. Macros are useful in live environments where time is critical and operation errors are not tolerated. In addition to using macros to record complex panel operations, macros can also be used to record menu operations. Macros can be edited either directly from the control panel or with the touch-screen menu display. Once programmed, macros can be executed in several ways: By recall/run from the Flexi-Pad or 10-key PAD module, or by activating the lever on a timeline to execute automatically in a sequence. Macros can be recalled remotely and can replace other panel buttons as a macro-only, by pressing the pre- and post macro buttons simultaneously.

• Networking functions
The MVS-6530 switcher can be operated with a single Ethernet-based network. This integrated LAN enables easier connection to devices.

• Powerful device control
The MVS-6530 switcher has integrated device control and so does not require the use of an additional unit, simplifying system installation. Devices can be controlled on the same timeline as switcher events or as part of macro events. When integrating a Sony disk protocol or VDCP-controlled disk recorder, clip management is also provided, allowing different server clips to be recalled and played back as part of a switcher timeline or macro.

• Intelligent tally functions
All MVS switchers provide an intelligent and multi-functional tally system, which seamlessly integrates the switcher and router tally functions. Multiple on-air and recording tallies can easily be programmed on the switcher system, so that even complex tally requirements are accommodated.

• Clip Transition Effects
All MVS family switchers provide clip transition effects that enable transition, together with audio, using a frame memory sequence. During a clip transition, a computer-generated image, such as a logo, moves across the picture from one side to the other, while the transition is performed behind the image. This effect is useful for sports broadcasting. Although highly sophisticated, the effect can be performed with simple settings. Various types of transition such as Mix, Wipe, DME Wipe, and PresetColor Mix can be applied in a background transition according to the motion of the clip. A transition can be operated both backwards and forwards with the fader lever.

• Built-in format converter
One convenient feature of MVS switchers is that a format conversion capability can be incorporated by adding an extra format converter board (MKS-6550). This option provides up-conversion and down-conversion between HD (1080i and 720p) and SD (480i and 576i), and cross-conversion between 1080i and 720p at both inputs and outputs. With these capabilities, there is no need for external format conversion. A variety of signal formats can be handled within the switcher system, which minimizes overall system cost.

• Built-in DME processor
The MVS-6500 processor offers the option of two channels of internal digital multi-effects (DME) with installation of the MKS-6570 DME board. This switcher supports brilliant non-linear effects as well as frequently used DME patterns. For example, the following effects can be performed: Digital SPARKLE Effects*, 3D Linear Transformation, Video Modify, Freeze, Light/Trail, Input/Output Effect, Digital SKETCH, Metal, and Glow. These capabilities ensure the highly affordable MVS-6500 Series is user friendly.
* These non-linear effects are supported on a single channel.

• Plug-in editing control software
Optional plug-in BZS-8050 Control Software and MKS-8050 and MKS-2050 Editing Keyboards add powerful linear editing capabilities to MVS-6500 Series switchers. BZS-8050 Editing Control Software offers a similar level of functionality to the popular BVE-2000 Editor, along with some key functions available on the BVE-9100 Editor.
