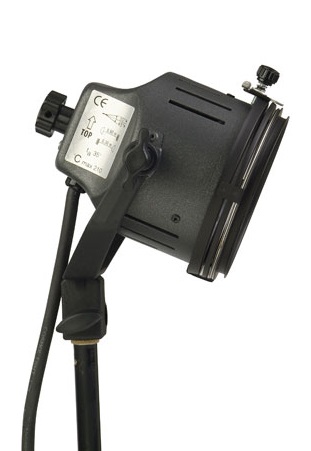

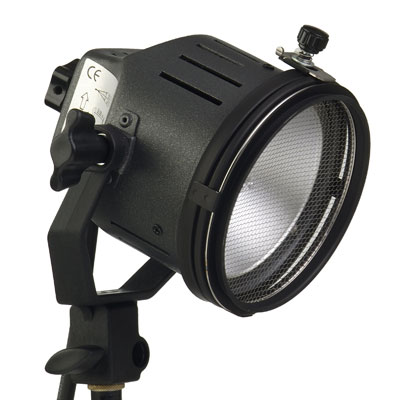

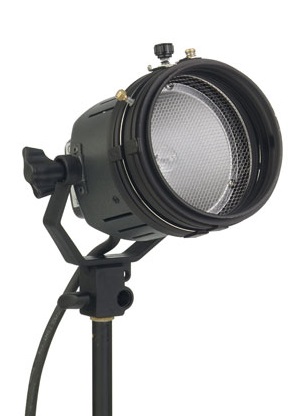

COSMOLIGHT RC-1650/V

MAIN FEATURES

• The housing is aluminium, a very strong and lightweight material.
• The attractive and elegant design makes it an ideal object also for interior decoration and architectural applications.
• Thanks to its special design and treatments, the reflector offers an extremely powerful and bright light output for an exceptional even illumination.
• The focusing mechanism for beam variation is smooth and accurate and allows a precise light delivery exactly where needed.
• The lantern accepts both 300 and 650W lamps.
• Top quality switch with a very high number of on/off cycles.
• All main mechanical components are stainless steel.
• A complete set of accessories is available to create effects and control the light.
• Quick and easy to set up.
• It is available in kit.

TECHNICAL DATA

• Aluminium housing.
• High-temperature painting.
• Sanded and treated aluminium reflector.
• Spot/flood focusing via a rear knob.
• Thermoplastic yoke mounting with 16mm (5/8”) socket.
• 3,5 mt VDE fire resistant silicone cable, section 3x1,5 mmq.
• In-line 10A switch protected by high impact-proof housing.
• Cable gland against tear.
• Supply voltage 230-240V~.
• Lamp base GX6,35.
• Correlated color temperature 3200K.
• IP 20.
• CE compliant.
• Weight 1,200 kg.
• Packing dimensions 27x21xh17 cm.

ACCESSORIES

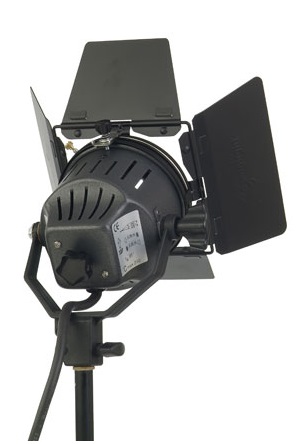

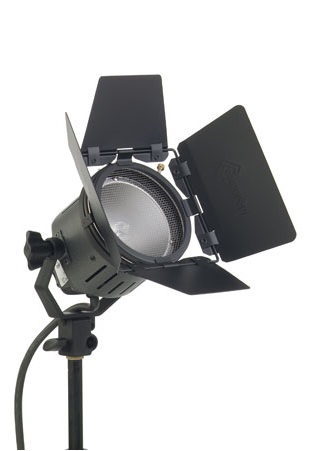

	RC 1653 Four-leaf barndoor gr 150
	RC 1651 Accessory holder gr 80 /td>

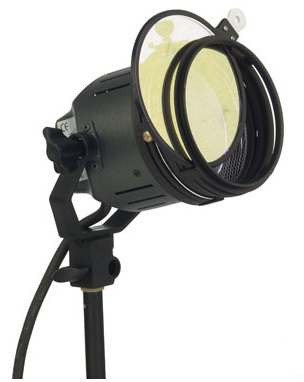

	RC 1654 Dichroic filter gr 45
	RC 1655 Diffusion glass gr 45
	RC 212B Aluminium stand 76/264 cm gr 1120 (as alternative RC 211B, RC 212B)
	RC 4170 Clamp with spigot 16mm gr 300
	RC 4320 Toggle joint with 2 sockets 16mm gr 250
	RC 4325 Umbrella diam. 80 cm gr 340

TECHNICAL DRAWING

PHOTOMETRIC DATA

LAMPS

BASE GX 6,35 - 3200K
MOD.		WATT	ANSI	LIF
RC 1650V		300-230V 3400K
		300-230V 3200K		CP/97
		300-230V 3400K	BWM	P1/13
		also available 240V version

ORDERING CODES

RC 1650V - Uniflood 300/650W
