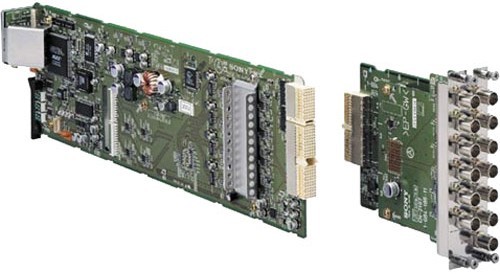

Sony HKSP-061M
Digital Video 8x4 Selector Board
The HKSP-061M digital video selector board features 8 inputs x 4 outputs and can route serial digital signals at up to 1.5 Gb/s without any setting changes. A variety of matrix configurations are available. Installs in PFV-SP Series Signal Processing Units in any combination with other HKPF-SP/HKSP function boards.
This board has a high-bandwidth capacity of up to 1.5Gb/s without any setting changes. It also features multi bit-rate transmission, an auto reclocking function, and auto cable equalization with coaxial cable lengths up to 328 ft (100m) in length.
Synchronized switching with an external reference feature is available and the unit retains crosspoint data to restore settings after it is powered down. Remote status monitoring is possible via the S-BUS remote interface. The board can also be controlled through the front LED panel of the unit in which it is installed.
Digital Video Selection
This board is a digital video selector that allows multiple signals to be routed on command via (8) inputs and (4) outputs.
High-Bandwidth Capacity
This board has a high-bandwidth capacity of up to 1.5Gb/s without any setting changes.
Controls
Remote status monitoring is possible via the S-BUS remote interface. The board can also be controlled through the front LED panel of the unit in which it is installed.
| INPUTS | x8 Serial digital video input: SDI connectors (BNC type) x2 Reference inputs: REF IN connectors (BNC type), Black Burst or Tri-level sync signal |
|---|---|
| WEIGHT | Board: Approx. 16 oz (450g) |
| OUTPUTS | x4 Serial digital video output: SDI out connectors (BNC type) |
| SWITCHING BANDWIDTH | 143 Mb/s to 1.485 Gb/s |
| DIMENSIONS | Board (HxW): 4-1/2 x 15-3/8" (112.2 x 388.3mm) Connector Panel (WxHxD): 5-1/8 x 6-1/8 x 1-1/2" (130 x 152.5 x 38mm) |
| POWER REQUIREMENT | +12 V DC: 2.0 A |
