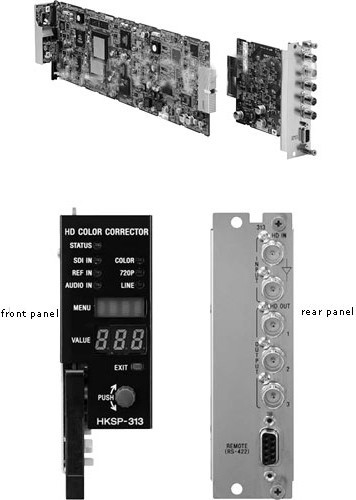

Sony HKSP-313

The HKSP-313 Color-Correcting Board for PFV-SP3300 from Sony is a module that provides control of various color parameters for different types of signals when using a PFV-SP3300 Signal-Processing Unit. The unit works with multiple HD formats and also offers line conversion between 1035 and 1080 and format conversion between 1080 and 720p. Up to (8) of these boards can be installed in (1) PFV-SP3300 unit. The HKPF-SP/HKSP function boards install in PFV-SP Series Signal Processing Units in any combination with other HKPF-SP/HKSP function boards.

Other key features include system and audio delay, HD SDI active loop-through output, a built-in signal generator, and the ability to transfer UMID and VITC data. This board can be controlled remotely through an optional HKDV-503/900 digital video controller via RS-422 (GPI also provided) or UCP-8060 universal control panel (Ethernet 100BASE-TX).

Color Correction for PFV-SP3300 Signal-Processing Unit
This board is a module that provides control of various color parameters for different types of signals with the PFV-SP3300 Signal-Processing Unit.

HD Format Support & Conversion
The unit works with multiple HD formats and also offers line conversion between 1035 and 1080 and format conversion between 1080 and 720p.

Expansion
Up to (8) of these boards can be installed in (1) PFV-SP3300 Signal-Processing Unit.

Key Features
This board features system and audio delay, HD SDI active loop-through output, a built-in signal generator, and the ability to transfer UMID and VITC data.

Control
This board can be controlled remotely through an optional HKDV-503/900 digital video controller via RS-422 or UCP-8060 universal control panel.
