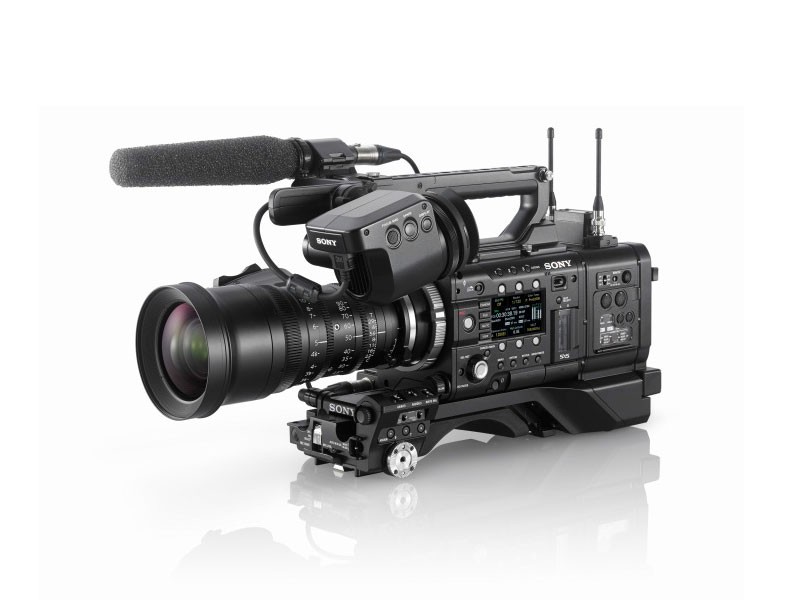

Sony (CBK-55BK) Buildup Kit for F55/F5

CBK-55BK EFP Style Buildup Kit. (Mfr # CBK-55BK)

Sony's CBK-55BK Buildup Kit is a specialized accessory docking Shoulder Pad and Interface for the PMW-F55/F5. This accessory can be attached easily and allows users to access key functions such as Shutter, Gain, White Balance, Rec Buttons and Assignable Buttons.

In addition the CBK-55BK supports Wireless slot-in audio receiver and Audio control like standard Broadcast shoulder camcorders.For documentary shooters and other cameramen who want to use F55 and F5 more comfortably and Run-and-Gun style, this Docking system will be a strong weapon by fasten their work.

Key Features:

  • Two adjustable blocks for good weight balance
  • RAW recording functionality
  • Battery adaptor
  • Easy to attach/detach mechanism
  • Support of wireless audio receiver

PMW-F55/F5 DOC:

  • DOC System
  • Easy access to camera functions on Front Block
  • Adjustable Shoulder pad and Front Block for appropriate weight balance
  • Easy Docking and Undocking with F55/F5
  • Same Audio Control Panel as Broadcast Shoulder Camcorder
  • Supports Wireless slot-in audio receiver
  • In/Output panel at the rear side
  • Supports RAW Recording with AXS-R5
  • Brushed handle including Mic. holder and VF Cable protection

Supported options

  • WRR-855 UHF Synthesized Tuner Unit
  • DWR-S02D Digital Wireless Receiver
  • DWR-S01D Digital Wireless Receiver
  • AXS-R5 Portable Memory Recorder
  • AC-DN10, AC-DN2B AC Adaptor
  • BP-FL75, BP-L80S Battery Pack
  • BC-L70, BC-L90 Battery Charger
  • ECM-680S, ECM-678, ECM-674 Microphone
  • EC-0.5X3F5M Microphone Conversion Cable (for ECM-678/674 to 5pin)






STORAGE TEMPERATURE –20 °C to +60 °C (–4 °F to +140 °F)
OPERATING TEMPERATURE 0 °C to 40 °C (32 °F to 104 °F)
DIMENSIONS Approx. 170 × 182 × 351 mm (6 3/4 × 7 1/4 × 13 7/8 inches)
POWER CONSUMPTION Approx. 3W (Body and battery adaptor)
POWER REQUIREMENT DC 12 V (11 V to 17 V)
MASS 2.2 kg (4 lb. 14 oz.) (Body and battery adaptor)




  • Battery adaptor (1)
  • Rod (Φ 15 mm × 250 mm) (2)
  • Headphone plug adaptor (L type) (1)
  • Handle (1)
  • Microphone holder (pre-attached to the handle) (1)
  • Slide plate (1)
  • Tape measure hook (1)
  • VF connector protector (1)
  • Shoulder strap (1)
  • Operation manual (1)
  • Standard Manufacturer's Warranty.
