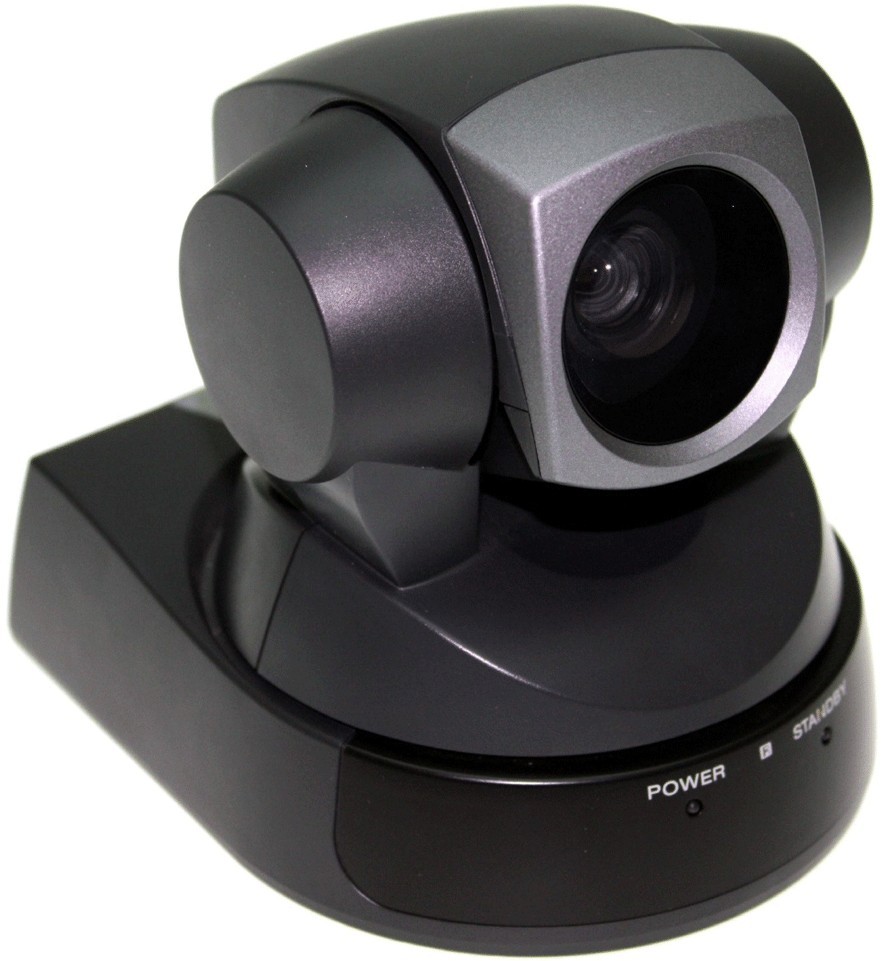

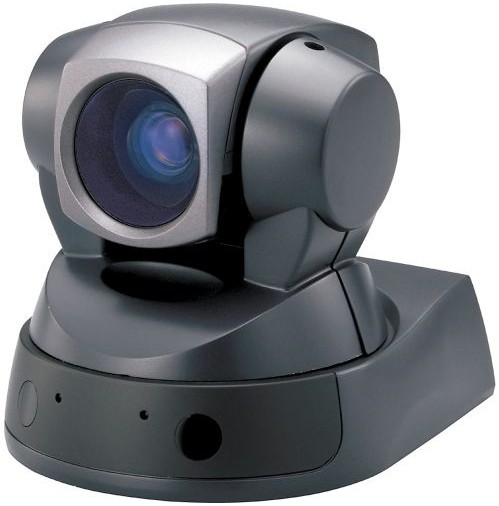

SONY EVI-D100P

The EVI-D100P is a Pan Zilt Zoom video camera ideal for videoconferencing applications

Sony

Discover the PTZ Sony Camera dedicated to the videoconference market
The EVI-D100/P is a high quality CCD cameras that combine a high-speed, quiet pan/tilt with a wide angle view and 40x zoom (10x optical + 4x digital), all in a compact, easy-to-use package.

The EVI-D100/P camera boasts impressive and innovative features such as auto focus, auto white balance and automatic exposure control which provide fast and stable hands free operation when the camera changes pan/tilt positions.

The EVI-D100/100P cameras complete perfectly the EVI-D70/P cameras. These models forms together the Sony EVI line up.

Benefits:
• Quiet Operation
• 40x Zoom Ratio (10x Optical + 4x Digital)
• Built-in Conversion Lens for Wide Angle View (65 degrees)
• High Speed, Wide Range Pan/Tilt Head
• Fully Controllable Remotely via RS-232C (VISCA)
• Multi-function IR Remote Commander® unit
• Auto Sleep Function
• Six Position Presets with Battery Back-up
• Various Picture Effects
• Superior Sony quality design

MIN. ILLUMINATION 3.5 lux (F1.8)
DISTORTION Less than 5 % (lens)
DIMENSIONS (WXHXD) 113 x 120 x 132 mm (4? x 4? x 5? inches)
ZOOM RATIO 4x (72x with optical zoom)
STORAGE TEMPERATURE -20 to 60
OPERATING TEMPERATURE 0 to 40
HORIZONTAL ANGLE OF VIEW 6.6 degree (wide end) to 65 degree (tele end)
LENS FIT & MOUNT 10x Optical zoom, 40x with Digital Zoom, f-3.1 mm (wide) to 31 mm (tele), F1.8 to F2.9
MINIMUM OBJECT DISTANCE 100 mm (wide end), 600 mm (tele end)
VIDEO SIGNAL PAL
VIDEO OUTPUT VBS, Y/C
POWER REQUIREMENT DC 12 V Max. 13.2W (at 12 Vdc)
SIGNAL-TO-NOISE RATIO More than 50 dB
PIXEL RESOLUTION 752 (H) x 582 (V) 460 TV lines (Wide end)
SENSOR TYPE 1/4 type Super HAD CCD

• Standard Manufacturer's Warranty
• AC Adaptor with cable
• IR Remote Commander
• Velcro tape
• Operating Instructions
