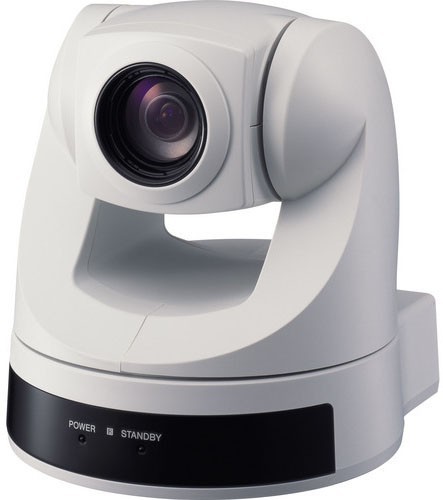

SONY EVI-D70P - Color:White
The EVI-D70P is a Pan Zilt Zoom video camera for remote shooting and remote monitoring applications.
Intelligent communication to capture remotely every scene
The EVI-D70P combine a high quality colour video camera with the flexibility of a remote pan/tilt/zoom operation, all in a compact easy-to-use package. Incorporating an 18x optical zoom lens, these cameras allow a user to zoom in on a small or distant object with exceptionnal clarity.
Compared to his predecessor, the EVI-D31, the EVI-D70P camera offer a wide pan/tilt range, and a faster pan/tilt mechanism. Above all, these cameras are ceiling mountable - a first for the popular Sony EVI cameras.
The EVI-D70P is equiped with a variety of convenient features such as auto ICR function, Alarm function and RS-232C/422 serial control , making them ideal for any remote shooting applications such as distance learning, indoor and outdoor security systems, courtrooms, event venues, concert halls, and more.
• High resolution picture quality
• High speed, wide range PTZ
• x18 Optical Zoom
• Ceiling/Desktop Mountable
• Six position pre-set
• Auto Tracking
• RS-232C/RS-422 serial port
• Plug and Play product: Various applications
Benefits:
• Ceiling/Desktop mountable
• Superb picture quality with Exview HAD CCD
• Auto ICR (IR Cut Filer Removal) Function
• RS-232C or RS-422 Serial control (VISCA Command)
MIN. ILLUMINATION | 1lx (F1.4) |
---|---|
WEIGHT | 950 g |
DIMENSIONS (WXHXD) | 132 x 144 x 144 mm |
STORAGE TEMPERATURE | -20 to 60 ? C (-4 to 140?F) |
OPERATING TEMPERATURE | 0 to 40 ? C (32 to 40?F) |
HORIZONTAL ANGLE OF VIEW | 2.7? to 48 degrees |
LENS FIT & MOUNT | X18 Power Zoom, f-4.1mm to 73.8 mm, F1.8 to F3.0 |
MINIMUM OBJECT DISTANCE | 10mm (wide end), 800mm (Tele end) |
VIDEO SIGNAL | PAL |
SHUTTER SPEED | 1 to 1/10,000 s |
POWER CONSUMPTION | 12 W |
VIDEO OUTPUT | VBS, Y/C |
POWER REQUIREMENT | DC 10.8 to 13.2 V |
SIGNAL-TO-NOISE RATIO | more than 50dB |
PIXEL RESOLUTION | 752 (H) x 585 (V) 460 TV lines |
SENSOR TYPE | 1/4"Exview HAD Color CCD |
• Standard Manufacturer's Warranty
• AC power adapter (x1)
• Remote Commander (x1)
• Velcro tape
• Operating manual (x1)
