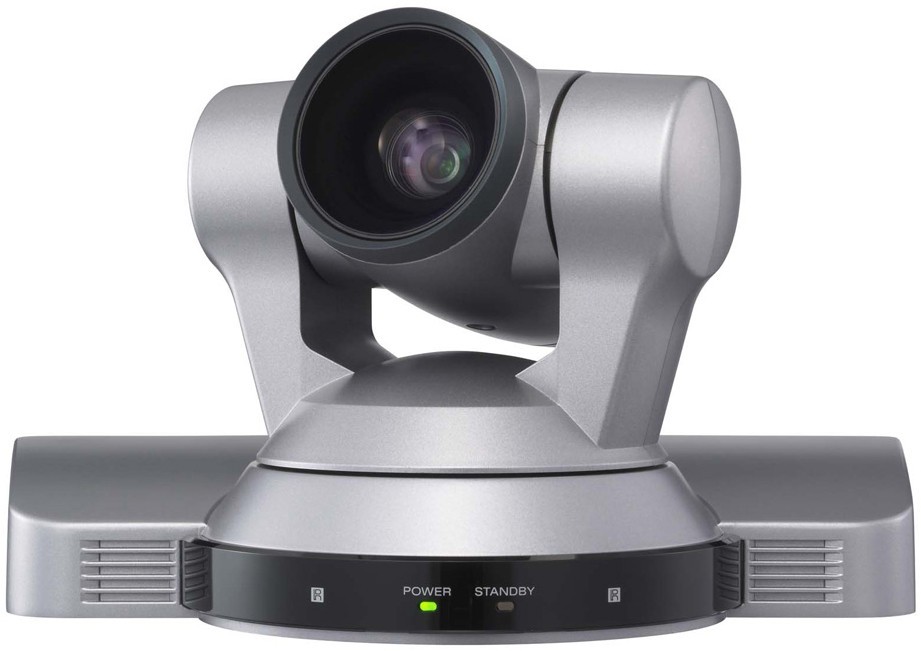

SONY EVI-HD1
The High-Definition, All-in-One, Pan/Tilt/Zoom (PTZ) EVI-HD1 Color Video Camera Brings Scenes to Life
Sony, a leader in developing PTZ cameras and a long standing leader in HD technology, is combining its strengths with the introduction of its first high-definition PTZ camera. Joining the popular EVI family, this unique camera allows you to take your first step towards HD migration with the flexibility to output analog or digital video signals – from standard definition (SD) to full high definition (HD). Conference rooms everywhere are making the transition to HD, and the Sony EVI-HD1 makes this change effortless.
• Superb Picture Quality – 2-Megapixel HD CMOS Sensor
• Wide-Range, Quiet, and Quick Pan/Tilt Mechanism
• Multi-Format Video Outputs from NTSC/PAL to Full HD
• High-Quality Image Transmission via HD-SDI
• RS-232C Remote Control (VISCA protocol)
• 40x Zoom Ratio
• Wide-Viewing Angle (70 degrees)
• Six-Position Presets
• Multi-Function IR Remote Commander Unit
Benefits:
The EVI-HD1 HD Color Video Camera employs a 1/3-type HD CMOS image sensor boasting two million effective pixels and can be used in combination with any number of codecs and other systems to produce high-quality, high-resolution images. The EVI-HD1 inherits many outstanding features from the popular EVI-D100 PTZ camera and couples these with superb HD picture quality.
With its wide field of view, built-in 10x optical zoom lens, 16:9 aspect ratio image and high-speed, quiet pan/tilt operation, the EVI-HD1 can cover subjects across wide areas, with minimal disturbance.
Combining convenient features such as auto focus/auto exposure, 6-position presets, and external/remote control, the EVI-HD1 camera is ideal for applications such as videoconferencing, distance learning, and corporate training.
| MIN. ILLUMINATION | 15 lx (50 IRE, F1.8) |
|---|---|
| WEIGHT | Approx. 2 kg (4 lb 7 oz) |
| DIMENSIONS (WXHXD) | 259 x 150 x 169 mm (10 1/4 x 6 x 6 3/4 inches) |
| STORAGE TEMPERATURE | -20 to 60 |
| OPERATING TEMPERATURE | 0 to 40 |
| HORIZONTAL ANGLE OF VIEW | 8 |
| LENS FIT & MOUNT | 10x optical Zoom, 40x with digital zoom, f - 3.4 to 33.9 mm, F 1.8 to F 2.1 |
| MINIMUM OBJECT DISTANCE | 100 mm (wide) |
| SHUTTER SPEED | 1/2 to 1/10,000 sec. |
| POWER CONSUMPTION | Max. 30 W (at DC 12 V) |
| VIDEO OUTPUT | HD HD-SDI, Analog Component (Y/Pb/Pr) SD VBS, Y/C |
| POWER REQUIREMENT | 12 V DC (10.8 to 13.0 V DC) |
| SIGNAL-TO-NOISE RATIO | 50 dB |
| PIXEL RESOLUTION | Approx. 2 Megapixels (16:9) |
| SENSOR SIZE | 1/3-type CMOS |
• Standard Manufacturer's Warranty
• AC adaptor (1)
• IR Remote Commander unit (1)
• AC power cable (1)
• Operating instructions (1)
