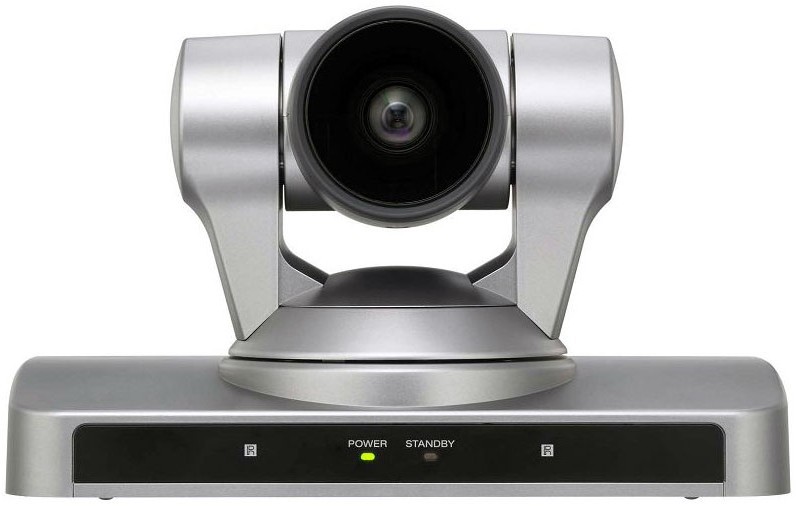

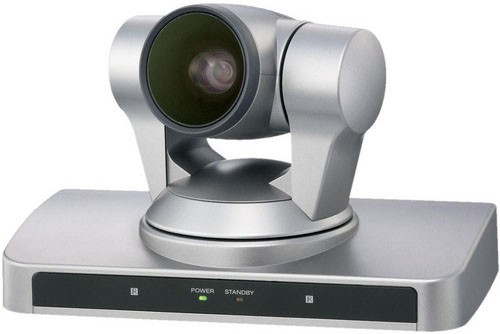

SONY EVI-HD3V
Experience superb High Definition picture quality at an affordable price, with the EVI-HD3V all-in-one Pan/Tilt Zoom (PTZ) Colour Video Camera from Sony.
Sony, the worlds leading robotic camera manufacturer, has strengthened its leadership position in High Definition PTZ solutions with the release of an affordable High Definition camera, the EVI-HD3V. The EVI-HD3V brings the best in Sony’s strong heritage on PTZ mechanics together with superb HD picture quality at up to 720p/60. The EVI-HD3V provides an optimised HD camera option for application environments where the desire is for a mid-range solution or where infrastructure limitations exist. It is ideally suited to videoconferencing, broadcasting, distance learning and other audio/visual applications.
Benefits:
The EVI-HD3V provides superb affordable HD quality at up to 720/60p. The world renowned Sony EVI high quality PTZ mechanism as seen in the EVI-HD1 comes as standard. The EVI-HD3V allows optimised performance where bandwidth or infrastructure is limited.
It is designed to be used in combination with a variety of video conferencing codecs and other broadcasting/AV systems to produce high quality HD images. A number of video output formats are supported allowing flexibility subject to existing HD infrastructure in situ.
With its wide-angle field of view, built in 10x optical zoom lens, 16:9 aspect ratio, high speed & quiet PTZ operation, the EVI-HD3V can cover subjects across wide areas in a fast and discrete way, minimising disturbance.
Combining convenient features such as auto focus / auto exposure, 6 presets and external / remote control, the EVI-HD3V is ideal for applications such as videoconferencing, distance learning, houses of worship, and corporate training.
| MIN. ILLUMINATION | 15 lx (typical) (F1.8, 50 IRE) |
|---|---|
| WEIGHT | Approx. 1.5kg (3 lb 5 oz) |
| DIMENSIONS (WXHXD) | 250 x 152 x 132 mm (9 7/8 x 6 x 5 3/8 inches) (without protrusions) |
| STORAGE TEMPERATURE | -20 to 60 |
| OPERATING TEMPERATURE | 0 |
| HORIZONTAL ANGLE OF VIEW | 8 |
| LENS FIT & MOUNT | Lens 10x optical zoom, 40x with digital zoom, f-3.4 to 33.9 mm, F1.8 to F2.1 |
| MINIMUM OBJECT DISTANCE | 100 mm (wide) |
| SHUTTER SPEED | 1/60 to 1/10,000 sec. (59.94 Hz system), 1/50 to 1/10,000 sec. (50 Hz system) |
| POWER CONSUMPTION | Max. 26.4 W (at DC 12 V) |
| VIDEO OUTPUT | DVI-I (Digital and Analog) |
| POWER REQUIREMENT | 12 V DC (10.8 to 13 V DC) |
| SIGNAL-TO-NOISE RATIO | 50 dB |
| SENSOR SIZE | 1/3-type CMOS |
• Standard Manufacturer's Warranty
• AC adaptor
• AC power cable
• IR remote commander unit
• Operating Instructions
