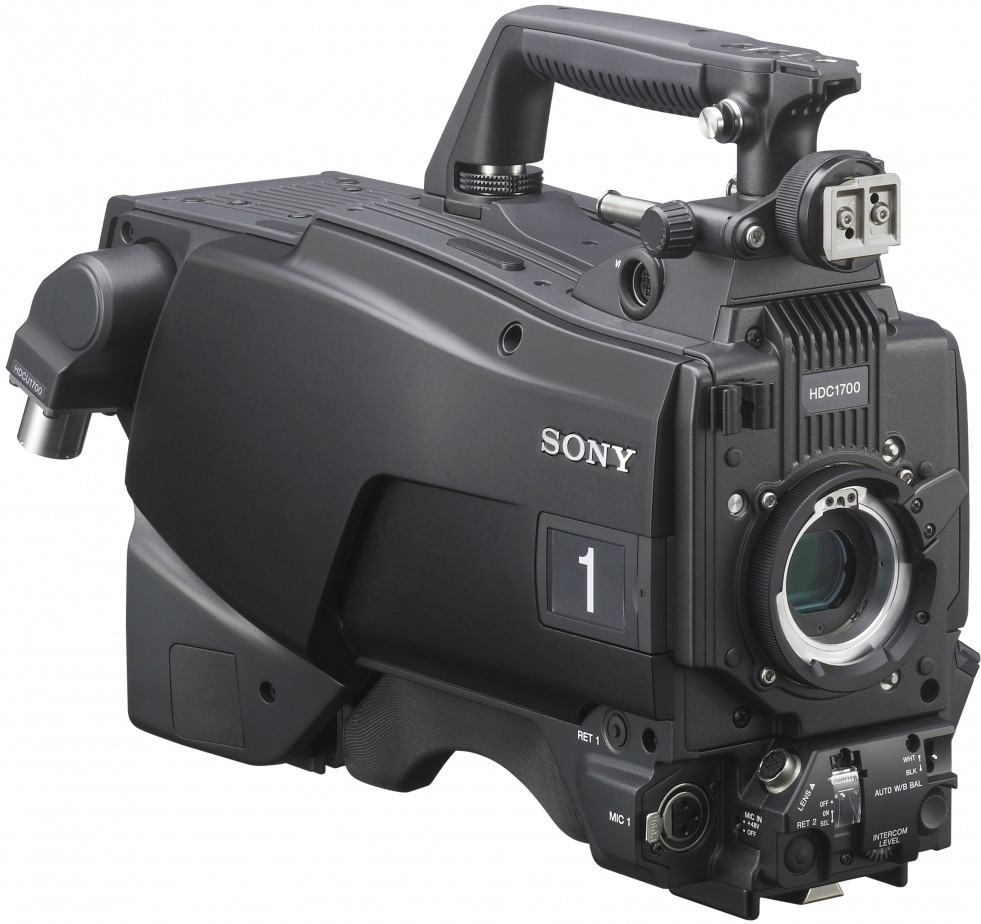

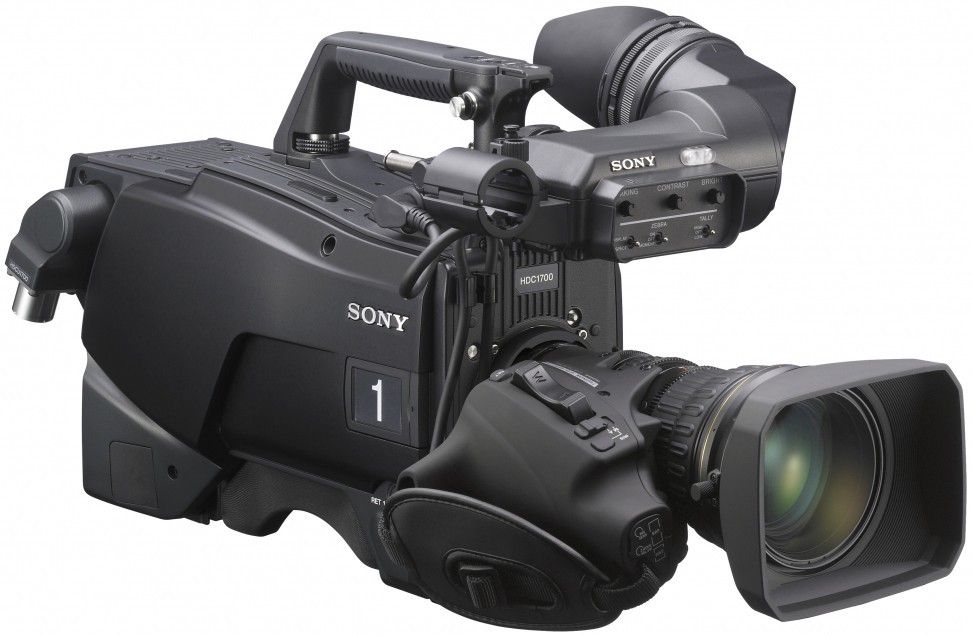

Sony HDC-1700
Multi format HD portable system camera
Portable system camera with 16-bit A/D conversion and fibre transmission
The HDC-1700 dual-format HD system camera is equipped with sophisticated three-chip 2/3-inch Power HAD FX CCD image sensors and the latest 16-bit A/D converter to provide superior picture quality. The HDC-1700 supports HD and SD signal formats including 1080/50i, 1080/59.94i, 720/50p, and 720/59.94p. For flexibility, there are many HDC Series accessories that can be utilised, such as optional HD viewfinders and large lens adaptors. The HDC-1700 is a truly cost-effective camera that also delivers genuine user-friendliness.
Features
- Superb image quality with cutting-edge technologies
- Adaptive Matrix function
- Auto Lens Chromatic Aberration Compensation (ALAC-2)
- Optional accessories expand usage
- Spirit level
- HDLA large lens adaptor maximises operability
- 1.5 Gbps Optical fibre transmission
- HDCU-1700 Camera Control Unit (CCU)
| WEIGHT | 4.5 kg (9 lb 15 oz) |
|---|---|
| SENSITIVITY | F10 (1080/59.94i mode), F11 (1080/50i mode) (at 2000 lx, 89.9% reflectance) |
| STORAGE TEMPERATURE | -20 |
| OPERATING TEMPERATURE | -20 |
| SIGNAL LEVEL | 1080/50i, 1080/59.94i, 720/50p, 720/59.94p 1080/23.98p*, 1080/24p*, 1080/25p, 1080/29.97p |
| PICK-UP PATTERN | 3-chip 2/3-inch type Progressive CCD |
| POWER REQUIREMENT | 240 V AC, 1.4 A (max.), 180 V DC, 1.0 A (max.), 12 V DC, 7 A (max.) |
| SIGNAL-TO-NOISE RATIO | Typical -60 dB |
| PIXEL RESOLUTION | 1920 x 1080 (H x V) |
