Sony MSU-1000
Master setup unit (horizontal type). (Mfr # MSU-1000)

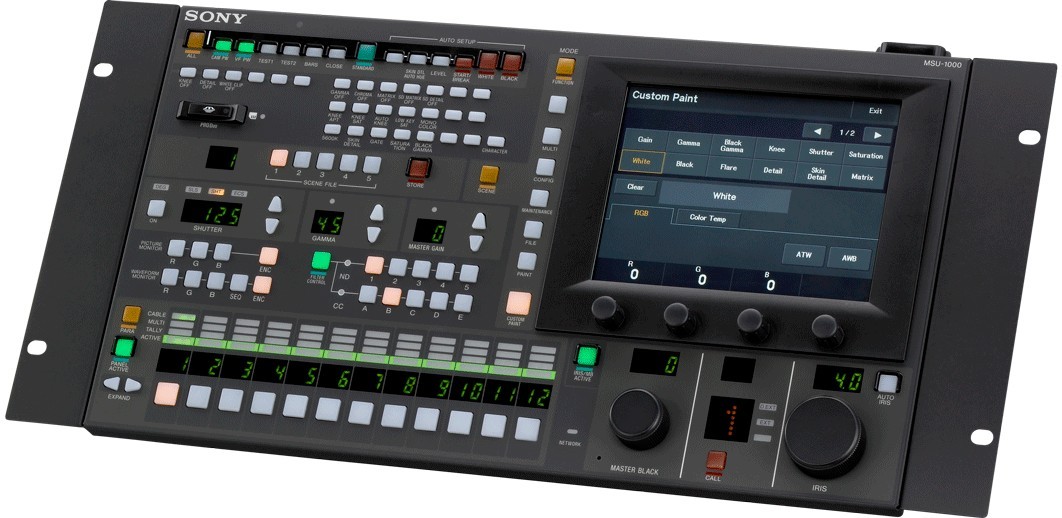

The MSU-1000 master setup unit is a control panel for camera configuration and maintenance. It is a horizontally-oriented device (as opposed to the MSU-1500, which has a compact, vertically oriented panel) and can control multiple camera systems, using either the CNU-700 Camera Command Network Unit, or using a LAN, in which case up to 96 cameras can be controlled.
Large and Flexible System Configuration
The MSU-1000 is part of a family of products that provides flexibility in the configuration of large and small camera control systems.
Ethernet LAN capability
The MSU-1000 supports inter-connectivity using an Ethernet LAN as well as a CNU-700
Customisable switch and menu.
MSU-1000 users can map any function to an assignable switch or menu item
| INPUTS | Ethernet : RJ-45 8-pin (X1) / CCU/CNU : Multi-connector 8-pin, female (x1) / AUX : Multi-connector 8-pin, female (x1) / EXT I/O : D-sub 50-pin, female (x1) / AC IN : 3-pin (x1) / DC IN : 4-pin (x1) |
|---|---|
| OUTPUTS | Ethernet : RJ-45 8-pin (X1) / CCU/CNU : Multi-connector 8-pin, female (x1) / AUX : Multi-connector 8-pin, female (x1) / EXT I/O : D-sub 50-pin, female (x1) / AC IN : 3-pin (x1) / DC IN : 4-pin (x1) |
| DIMENSIONS (WXHXD) | 482 ? 222 ? 67 mm (19 ? 8 3/4 ? 2 3/4 in.) (excluding protrusions) |
| OPERATING TEMPERATURE | 5 deg C to 40 deg C (41 deg F to 104 deg F) |
| POWER SUPPLY | AC 100 - 240 V. 50/60 Hz 0.35 A (Max.) DC 10.5 - 17 V 1.2 A (Max.) |
Standard Manufacturer's Warranty
