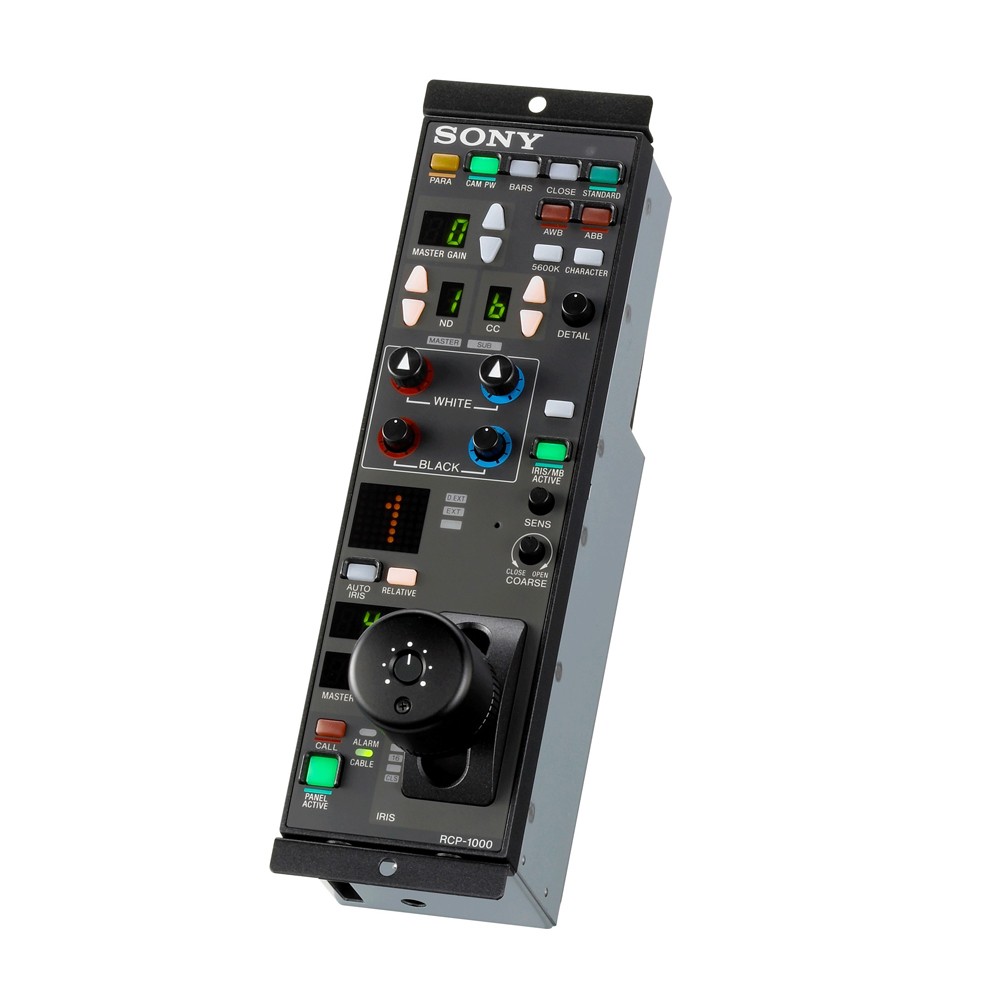

Sony RCP-1000
Simple remote control panel with joystick type control. (Mfr # RCP-1000)
The RCP-1000 is a remote control panel for configuring and controlling Sony’s studio and broadcast cameras. The RCP-1000 remote control panel is designed mainly for operation. Use a remote control panel with a camera on a one-to-one basis. The RCP-1000 is a compact control panel with specialized basic operations. The iris and master black adjustment block employs joystick type control. Illuminated buttons with high visibility flash and light to notify you of the operation status to enable operation even in dark locations.
Key features:
- Ultra-slim control panel with basic functions
- Joystick IRIS/Master Pedestal Control
- CCA cable operation
- Customizable button
- Successor model of the RCP700
| INPUTS | CCU/CNU : Multi-connector 8-pin, female (x1) / EXT I/O : D-sub 9-pin, female (x1) |
|---|---|
| WEIGHT | 1.1 kg (2 lb 9 oz) |
| OUTPUTS | CCU/CNU : Multi-connector 8-pin, female (x1) / EXT I/O : D-sub 9-pin, female (x1) |
| DIMENSIONS (WXHXD) | 68 ? 244 ? 123.7 mm (2 3/4 ? 9 5/8 ? 4 7/8 in) (excluding protrusions) |
| OPERATING TEMPERATURE | 5 deg C to 40 deg C (41 deg F to 104 deg F) |
| POWER SUPPLY | DC 10.5 V to 30 V |
| POWER CONSUMPTION | 2 W |
