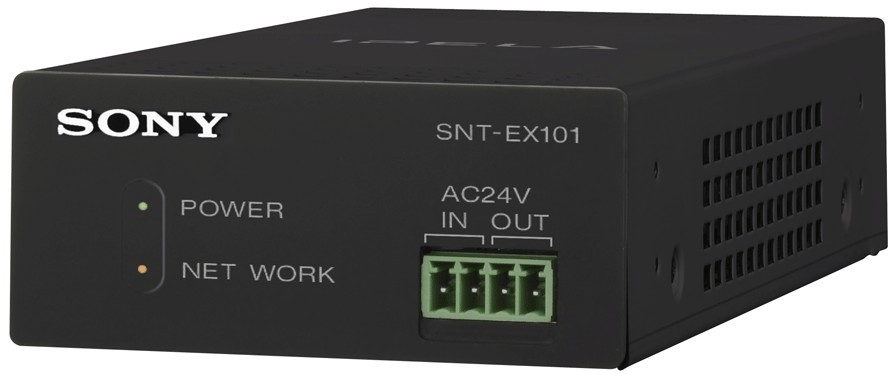

Sony SNT-EX101

Single channel video surveillance encoder, utilising state of the art image transmission and enhancement technology. (Mfr # SNT-EX101)

Video Surveillance Encoder

Designed for use in single channel applications the SNT-EX101 is a powerful, fully featured video encoder delivering a range of unique features. Converting traditional analogue video signals into digital video streams for transmission via IP-based networks, the SNT-EX series combines unrivalled network flexibility and enhanced imaging performance with advanced, intelligent video and audio analytics.

The SNT-EX series is the obvious choice when migrating from an existing analogue camera system to an IP based monitoring solution.

ONVIF (Open Network Video Interface Forum) compliance for easy interoperability with IP monitoring products from a variety of manufacturers.

1 Year PrimeSupport is included as standard within the EU, Norway and Switzerland. This gives users access to an expert helpdesk and, in the unlikely event of a failure, will arrange for an advance replacement unit to be delivered within a target time of one working day. An additional 2 years support is also available as an option.

INPUTS Sensor: x2
WEIGHT Approx. 0.4 kg (14 oz)
OUTPUTS Alarm: x2
DIMENSIONS (WXHXD) 73
STORAGE TEMPERATURE -20 to 60
OPERATING TEMPERATURE 0 to 50
INTERFACE Serial: RS-422/RS-485
OPERATING SYSTEM Microsoft Windows XP, Windows Vista
POWER CONSUMPTION 9.6W max.
POWER REQUIREMENT AC24 V (In
VIDEO INPUT Analog: x1
RECORDING FORMAT(S) H.264, MPEG-4, JPEG
RECORDING FRAME RATE H.264/MPEG-4/JPEG: 30fps (NTSC: 720 x 480, PAL: 720 x 576)

• Standard Manufacturer's Warranty
• CD-ROM (User's Guide and supplied programs) (1)
• Installation Manual (1)
• B&P Warranty Booklet (1)
• I/O port connector (1)
• 24 V AC connector (1)
• Attachment brackets (4)
• Attachment screws (8)
