Sony SNT-EX154

A four channel blade type video surveillance encoder, utilising state of the art image transmission and enhancement technology. (Mfr # SNT-EX154)

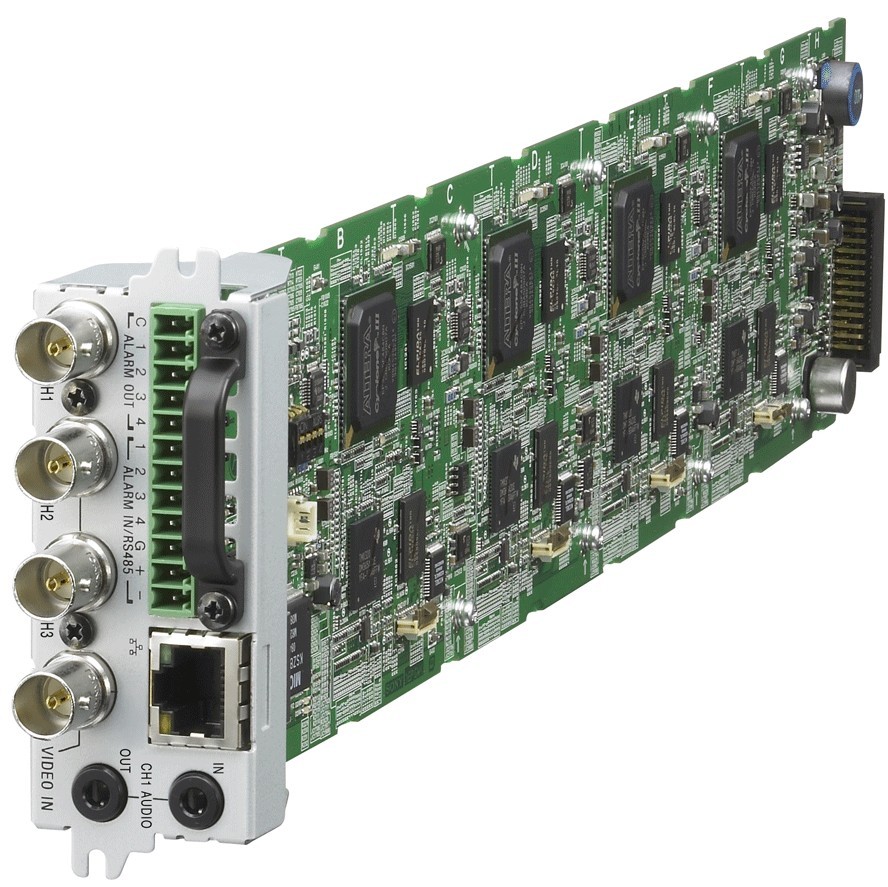

Four Channel Blade Type Video Surveillance Encoder

Designed for use in applications requiring up to four analogue channels, the SNT-EX104 is a powerful, fully featured video encoder delivering a range of unique features.

The SNT-EX154 delivers a unique blade type four channel camera encoding concept delivering highly flexible system expansion possibilities with a range of rack mounting accessories. The SNT-EX154 adds significant value and performance to existing medium to large scale analogue systems where a highly scalable encoding solution is required.

Converting up to four traditional analogue video signals per blade into multiple digital video streams for transmission via IP-based networks, the SNT-EX154 offers unrivalled network flexibility.

Sony’s unique XDNR (Excellent Dynamic Noise Reduction),VE (Visibility Enhancer) technology and DEPA Advanced (Distributed Enhanced Processing Architecture) combine with RS-485 and Coaxitron telemetry support to deliver superior image quality, a powerful video and audio analytics capability and advanced telemetry support to existing analogue systems.

The combination of powerful features and the enhancements offered to existing systems makes the Sony SNT-EX154 encoder the obvious choice when migrating from existing analogue camera systems, to a powerful, flexible and scalable IP based monitoring solution.

ONVIF (Open Network Video Interface Forum) compliance for easy interoperability with IP monitoring products from a variety of manufacturers.

1 Year PrimeSupport is included as standard within the EU, Norway and Switzerland. This gives user’s access to an expert helpdesk and, in the unlikely event of a failure, will arrange for an advance replacement unit to be delivered within a target time of one working day. An additional 2 Years support is also available as an option.

INPUTS Sensor: x4
WEIGHT Approx. 0.4 kg (14 oz)
OUTPUTS Alarm: x4
DIMENSIONS (WXHXD) 78
STORAGE TEMPERATURE -20 to 60
OPERATING TEMPERATURE 0 to 50
INTERFACE Serial: RS-485
OPERATING SYSTEM Microsoft Windows XP, Windows Vista
POWER CONSUMPTION 12W max.
POWER REQUIREMENT From Rack Station
VIDEO INPUT Analog: x4

• Standard Manufacturer's Warranty
• Installation Manual (1)
• B&P Warranty Booklet (1)
• I/O port connector (Only SNT-EX154) (1)
• Attachment screws (2)
